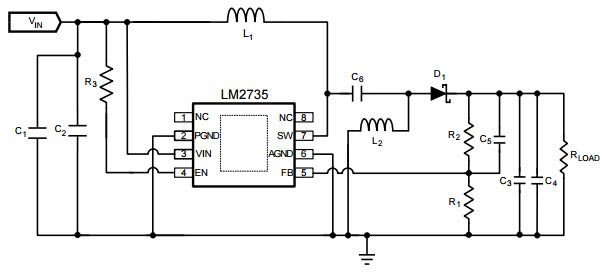

Typical Application Circuit for LM2735Y 520kHz, Vin = 2.7V - 5V, Vout = 3.3V @ 500mA Space-Efficient Boost and SEPIC DC-DC Regulator
Referenzdesign unter Verwendung des Teils LM2735Y von Texas Instruments
Bilder
1 / 1
Für Endprodukte
- Power Supplies
Beschreibung
- Typical Application Circuit for LM2735Y 520kHz, Vin = 2.7V - 5V, Vout = 3.3V @ 500mA Space-Efficient Boost and SEPIC DC-DC Regulator
Haupteigenschaften
-
Conversion TypeDC to DC
-
TopologyBoost
Empfohlene Bauteile (18)
