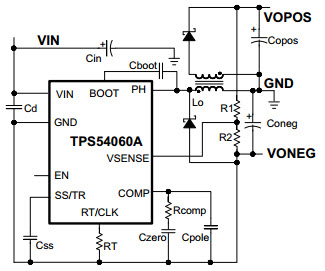

Typical Application Circuit for TPS54060A Step Down SWIFT DC/DC Converter With Eco Mode for Split Rail Power Supply Based on the SLVA369 Application Note
Referenzdesign unter Verwendung des Teils TPS54060A von Texas Instruments
Bilder
1 / 1
Für Endprodukte
- Power Supplies
Beschreibung
- Typical Application Circuit for TPS54060A Step Down SWIFT DC/DC Converter With Eco Mode for Split Rail Power Supply Based on the SLVA369 Application Note
Haupteigenschaften
-
Conversion TypeDC to DC
-
TopologyBuck
Empfohlene Bauteile (4)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
TPS54060ADGQR | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 3.5V to 60V Synchronous Step Down Single-Out 0.8V to 58V 0.5A 10-Pin HVSSOP EP T/R | In den Warenkorb | |
|
TPS54060ADRCR | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 3.5V to 60V Synchronous Step Down Single-Out 0.8V to 58V 0.5A 10-Pin VSON EP T/R | In den Warenkorb | |
|
|
TPS54060ADGQ | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 3.5V to 60V Synchronous Step Down Single-Out 0.8V to 58V 0.5A 10-Pin HVSSOP EP Tube | In den Warenkorb | |
|
|
TPS54060ADRCT | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 3.5V to 60V Synchronous Step Down Single-Out 0.8V to 58V 0.5A 10-Pin VSON EP T/R | In den Warenkorb | |
