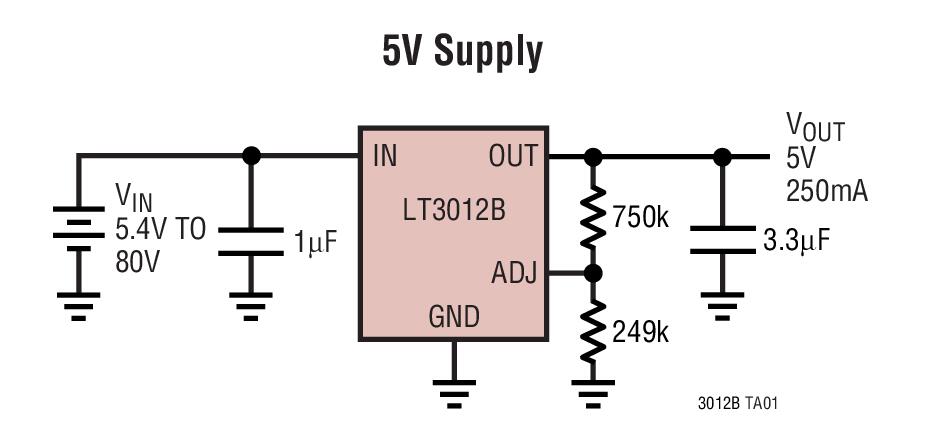

Typical Application for LT3012B - 250mA, 4V to 80V Low Dropout Micro-power Linear Regulator
Referenzdesign unter Verwendung des Teils LT3012B von Analog Devices
Bilder
1 / 1
Zugehörige Dokumente
Für Endprodukte
- Power Supplies
Beschreibung
- Typical Application for LT3012B - 250mA, 4V to 80V Low Dropout Micro-power Linear Regulator. The LT3012B is a high voltage, micropower low dropout linear regulator
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage5.4 to 80 V
-
Output Voltage50 V
-
TopologyLDO
Empfohlene Bauteile (6)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
LT3012BEFE#PBF | Analog Devices | Linear Regulators | LDO Regulator Pos 1.24V to 60V 0.25A 16-Pin TSSOP EP Tube | In den Warenkorb | |
|
LT3012BEDE#PBF | Analog Devices | Linear Regulators | LDO Regulator Pos 1.24V to 60V 0.25A 12-Pin DFN EP Tube | In den Warenkorb | |
|
|
LT3012BEDE#TRPBF | Analog Devices | Linear Regulators | LDO Regulator Pos 1.24V to 60V 0.25A 12-Pin DFN EP T/R | In den Warenkorb | |
|
|
LT3012BEFE#TR | Analog Devices | Linear Regulators | LDO Regulator Pos 1.24V to 60V 0.25A 16-Pin TSSOP EP T/R | In den Warenkorb | |
|
|
LT3012BEFE | Analog Devices | Linear Regulators | LDO Regulator Pos 1.24V to 60V 0.25A 16-Pin TSSOP EP | In den Warenkorb | |
|
|
LT3012BEFE#TRPBF | Analog Devices | Linear Regulators | LDO Regulator Pos 1.24V to 60V 0.25A 16-Pin TSSOP EP T/R | In den Warenkorb | |
