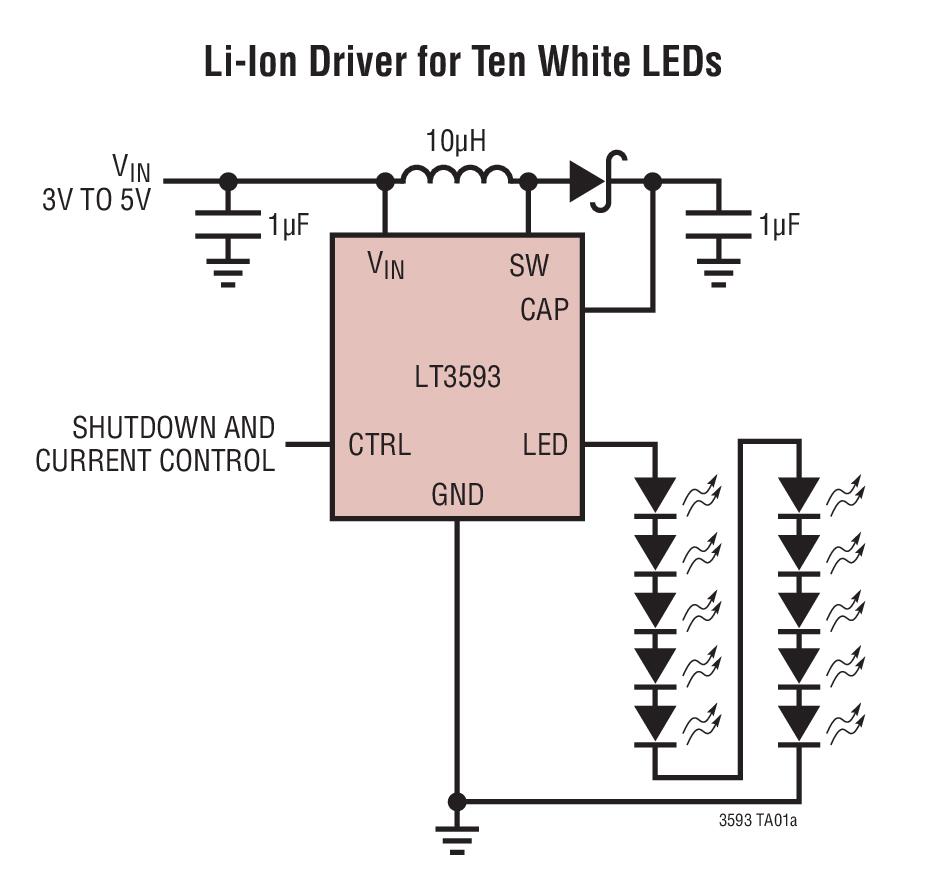

Typical Application for LT3593 Li-Ion Driver for Ten White LEDs
Referenzdesign unter Verwendung des Teils LT3593 von Analog Devices
Bilder
1 / 1
Zugehörige Dokumente
Für Endprodukte
- Cellular Phone
- Digital Camera
- GPS Receivers
- MP3 Player
- Personal Digital Assistant
- Portable Computers
Beschreibung
- Typical Application for LT3593 is a step-up DC/DC converter designed to drive up to ten white LEDs in series from a Li-Ion cell. Series connection of the LEDs provides identical LED currents and eliminates the need for ballast resistors. The device features a unique high side LED current sense that enables the part to function as a (one wire current source) where the low side of the LED string can be returned to ground anywhere
Haupteigenschaften
-
Input Voltage3 to 5 V
-
Number of Derived Elements10
Empfohlene Bauteile (6)
