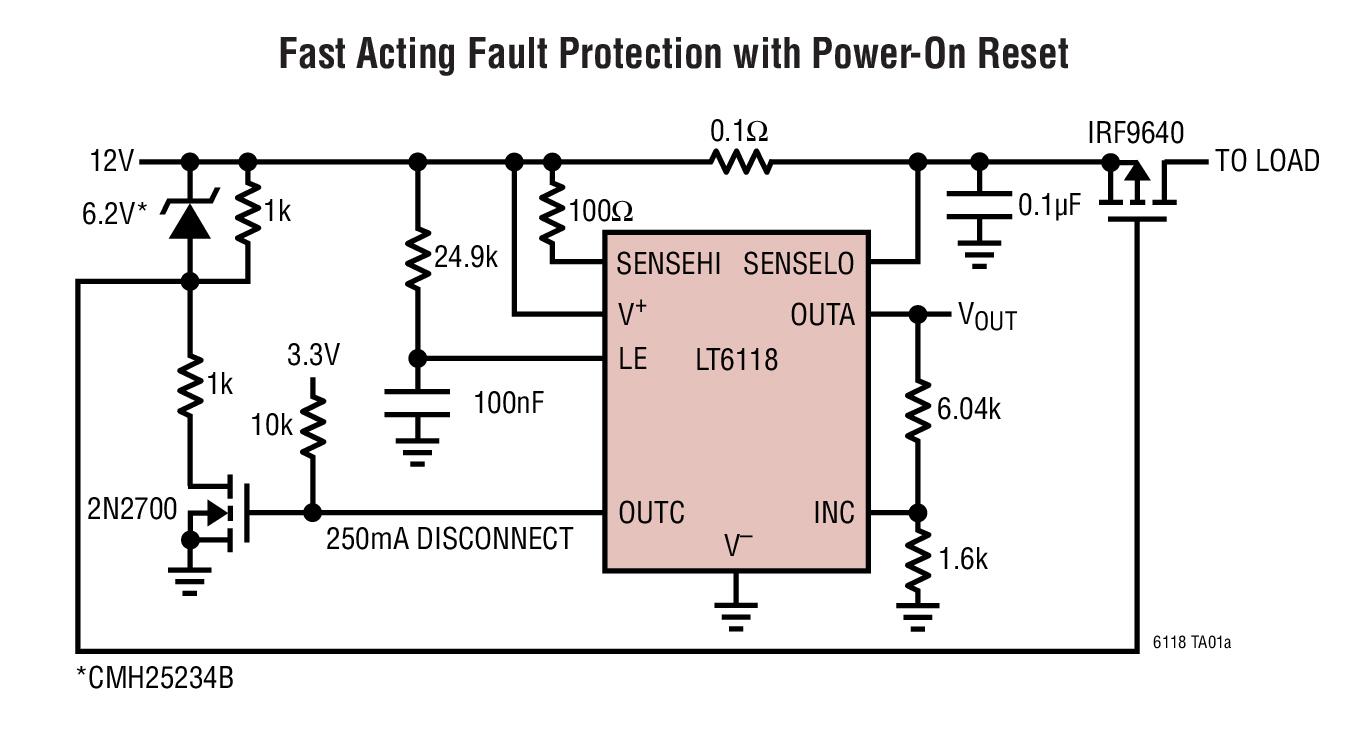

Typical Application for LT6118 - Current Sense Amplifier, Reference and Comparator with POR
Referenzdesign unter Verwendung des Teils LT6118 von Analog Devices
Bilder
1 / 1
Für Endprodukte
- Automotive Control & Monitoring
- Battery Monitoring
- Industrial Control
- Motor Control
- Over-Voltage & Under-Voltage Protection
- Shunt Regulator
Beschreibung
- Typical Application for the LT6118 is a complete high side current sense device that incorporates a precision current sense amplifier, an integrated voltage reference and a latching comparator
Empfohlene Bauteile (10)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
LT6118IMS8#PBF | Analog Devices | Linear Comparators | Comparator Single 60V 8-Pin MSOP Tube | In den Warenkorb | |
|
|
LT6118HMS8#PBF | Analog Devices | Linear Comparators | Comparator Single 60V 8-Pin MSOP Tube | In den Warenkorb | |
|
|
LT6118IMS8#TRPBF | Analog Devices | Linear Comparators | Comparator Single 60V 8-Pin MSOP T/R | In den Warenkorb | |
|
|
LT6118HMS8#TRPBF | Analog Devices | Linear Comparators | Comparator Single 60V 8-Pin MSOP T/R | In den Warenkorb | |
|
LT6118HDCB#TRPBF | Analog Devices | Linear Comparators | Comparator Single 60V 8-Pin DFN EP T/R | In den Warenkorb | |
|
|
LT6118HDCB#PBF | Analog Devices | Linear Comparators | Comparator Single 60V 8-Pin DFN EP T/R | In den Warenkorb | |
|
|
LT6118IDCB#TRMPBF | Analog Devices | Linear Comparators | Comparator Single 60V 8-Pin DFN EP T/R | In den Warenkorb | |
|
|
LT6118HDCB#TRMPBF | Analog Devices | Linear Comparators | Comparator Single 60V 8-Pin DFN EP T/R | In den Warenkorb | |
|
|
LT6118IDCB#TRPBF | Analog Devices | Linear Comparators | Comparator Single 60V 8-Pin DFN EP T/R | In den Warenkorb | |
|
|
LT6118IDCB#PBF | Analog Devices | Linear Comparators | Comparator Single 60V 8-Pin DFN EP T/R | In den Warenkorb | |
