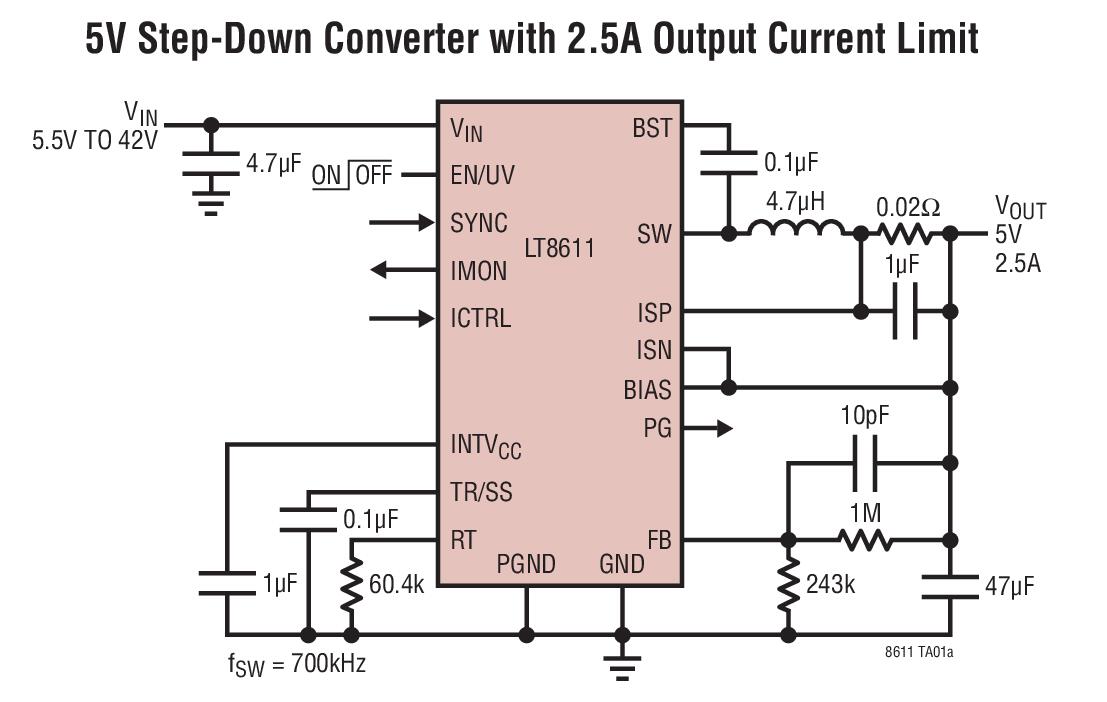

Typical Application for LT8611 - 42V, 2.5A Synchronous Step-Down Regulator with Current Sense and 2.5 uA Quiescent Current
Referenzdesign unter Verwendung des Teils LT8611 von Analog Devices
Bilder
1 / 1
Für Endprodukte
- Power Supplies
Beschreibung
- Typical Application for LT8611 - 42V, 2.5A Synchronous Step-Down Regulator with Current Sense and 2.5 uA Quiescent Current. The LT8611 is a compact, high efficiency, high speed synchronous monolithic step-down switching regulator that consumes only 2.5uA of quiescent current
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage5.5 to 42 V
-
Output Voltage5 V
-
TopologyBuck- Synchronous
Empfohlene Bauteile (4)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
LT8611IUDD#PBF | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 3.4V to 42V Synchronous Step Down Single-Out 0.97V to 40V 2.5A 24-Pin QFN EP Tube | In den Warenkorb | |
|
|
LT8611EUDD#TRPBF | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 3.4V to 42V Synchronous Step Down Single-Out 0.97V to 40V 2.5A 24-Pin QFN EP T/R | In den Warenkorb | |
|
|
LT8611EUDD#PBF | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 3.4V to 42V Synchronous Step Down Single-Out 0.97V to 40V 2.5A 24-Pin QFN EP Tube | In den Warenkorb | |
|
|
LT8611IUDD#TRPBF | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 3.4V to 42V Synchronous Step Down Single-Out 0.97V to 40V 2.5A 24-Pin QFN EP T/R | In den Warenkorb | |
