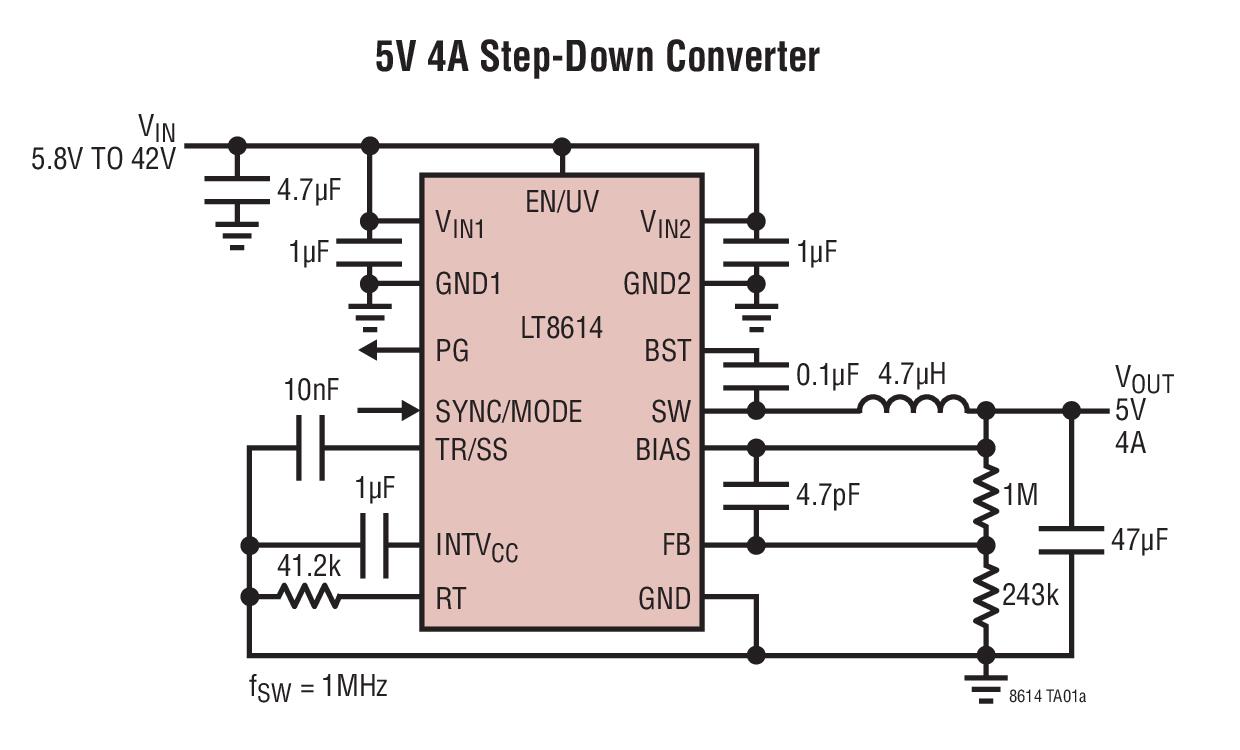

Typical Application for LT8614 42V, 4A Synchronous Step-Down Silent Switcher with 2.5 uA Quiescent Current
Referenzdesign unter Verwendung des Teils LT8614 von Analog Devices
Bilder
1 / 1
Für Endprodukte
- Automotive Power Supply
- Industrial Power Supply
- Telecom Power Supply
Beschreibung
- Typical Application for LT8614 42V, 4A Synchronous Step-Down Silent Switcher with 2.5 uA Quiescent Current. The LT8614 step-down regulator features Silent Switcher architecture designed to minimize EMI/EMC emissions while delivering high efficiency at frequencies up to 3MHz
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage5.8 to 42 V
-
Output Voltage5 V
-
Output Current4 A
-
TopologyBuck- Synchronous
Empfohlene Bauteile (6)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
LT8614IUDC#TRPBF | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 3.4V to 42V Synchronous Step Down Single-Out 0.97V to 41.8V 4A 18-Pin QFN EP T/R | In den Warenkorb | |
|
|
LT8614EUDC#PBF | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 3.4V to 42V Synchronous Step Down Single-Out 0.97V to 41.8V 4A 18-Pin QFN EP Tube | In den Warenkorb | |
|
|
LT8614IUDC#PBF | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 3.4V to 42V Synchronous Step Down Single-Out 0.97V to 41.8V 4A 18-Pin QFN EP Tube | In den Warenkorb | |
|
|
LT8614HUDC#TRPBF | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 3.4V to 42V Synchronous Step Down Single-Out 0.97V to 41.8V 4A 18-Pin QFN EP T/R | In den Warenkorb | |
|
|
LT8614EUDC#TRPBF | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 3.4V to 42V Synchronous Step Down Single-Out 0.97V to 41.8V 4A 18-Pin QFN EP T/R | In den Warenkorb | |
|
|
LT8614HUDC#PBF | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 3.4V to 42V Synchronous Step Down Single-Out 0.97V to 41.8V 4A 18-Pin QFN EP Tube | In den Warenkorb | |
