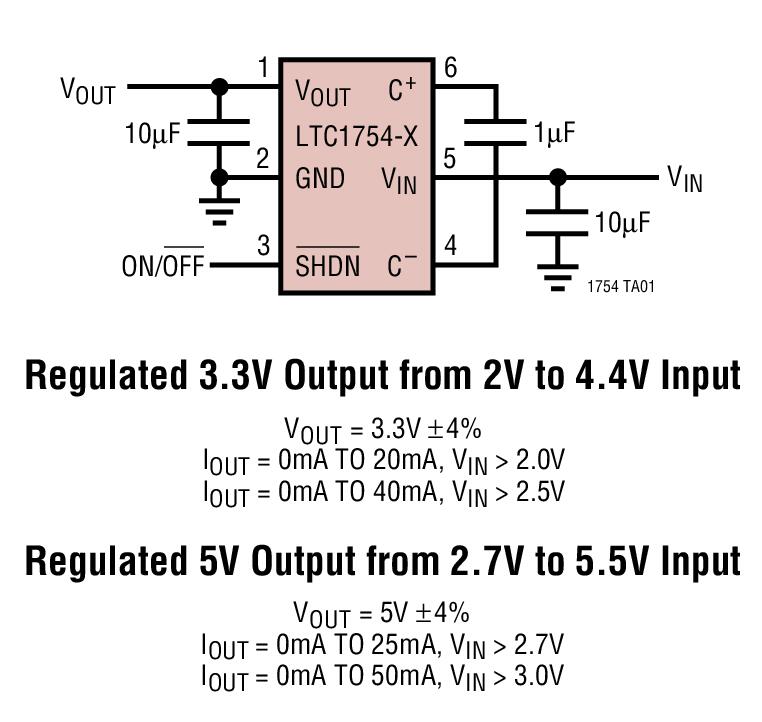

Typical Application for LTC1754 - Micro-power, Regulated 3.3V/5V Charge Pump with shut-down in SOT-23
Referenzdesign unter Verwendung des Teils LTC1754 von Analog Devices
Bilder
1 / 1
Für Endprodukte
- Power Supplies
Beschreibung
- Typical Application for LTC1754 - Micro-power, Regulated 3.3V/5V Charge Pump with shut-down in SOT-23. The LTC1754 is a micropower charge pump DC/DC converter that produces a regulated output
Haupteigenschaften
-
Conversion TypeDC to DC
Empfohlene Bauteile (11)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
LTC1754ES6-5#TRM | Analog Devices | Charge Pump | Charge Pump STPUP 5V 50mA 6-Pin TSOT-23 T/R | In den Warenkorb | |
|
|
LTC1754ES6-5 | Analog Devices | Charge Pump | Charge Pump STPUP 5V 50mA 6-Pin TSOT-23 | In den Warenkorb | |
|
|
LTC1754ES6-3.3#PBF | Analog Devices | Charge Pump | Charge Pump STPUP 3.3V 40mA 6-Pin TSOT-23 T/R | In den Warenkorb | |
|
|
LTC1754ES6-5#TRPBF | Analog Devices | Charge Pump | Charge Pump STPUP 5V 50mA 6-Pin TSOT-23 T/R | In den Warenkorb | |
|
|
LTC1754ES6-5#TR | Analog Devices | Charge Pump | Charge Pump STPUP 5V 50mA 6-Pin TSOT-23 T/R | In den Warenkorb | |
|
|
LTC1754ES6-3.3#TRMPBF | Analog Devices | Charge Pump | Charge Pump STPUP 3.3V 40mA 6-Pin TSOT-23 T/R | In den Warenkorb | |
|
|
LTC1754ES6-3.3#TR | Analog Devices | Charge Pump | Charge Pump STPUP 3.3V 40mA 6-Pin TSOT-23 T/R | In den Warenkorb | |
|
|
LTC1754ES6-3.3#TRPBF | Analog Devices | Charge Pump | Charge Pump STPUP 3.3V 40mA 6-Pin TSOT-23 T/R | In den Warenkorb | |
|
|
LTC1754ES6-5#TRMPBF (CUT REEL) | Analog Devices | Charge Pump | Charge Pump STPUP 5V 50mA 6-Pin TSOT-23 T/R | In den Warenkorb | |
|
|
LTC1754ES6-5#TRMPBF | Analog Devices | Charge Pump | Charge Pump STPUP 5V 50mA 6-Pin TSOT-23 T/R | In den Warenkorb | |
|
|
LTC1754ES6-3.3 | Analog Devices | Charge Pump | Charge Pump STPUP 3.3V 40mA 6-Pin TSOT-23 | In den Warenkorb | |
