Typical Application for LTC2249, 14-Bit, 80-Msps Low Power 3V Analog to Digital Converter
Referenzdesign unter Verwendung des Teils LTC2249 von Analog Devices
Bilder
1 / 1
Zugehörige Dokumente
Für Endprodukte
- Medical Imaging
- Portable Instrumentation
- Ultrasound System
- Wireless Communications
Beschreibung

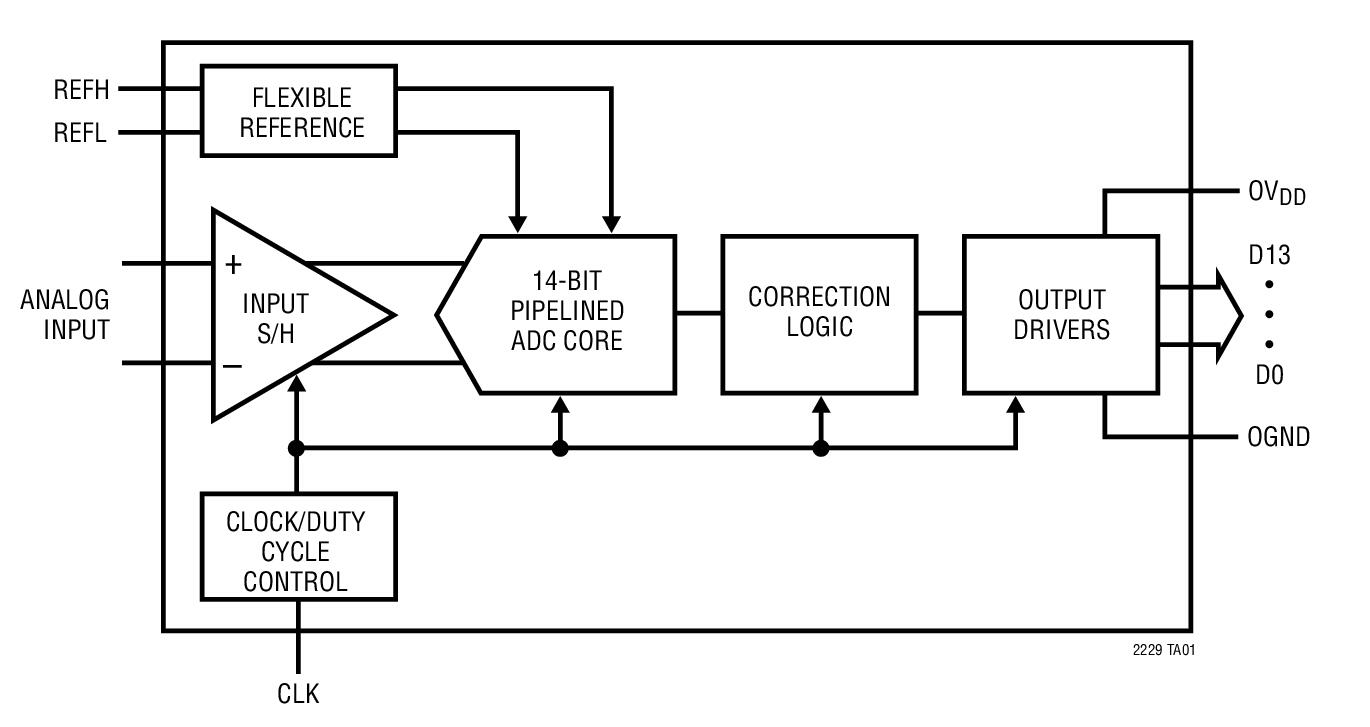

- Typical Application for LTC2249, 14-Bit, 80-Msps Low Power 3V ADC. The LTC2249 is a 14-bit 80Msps, low power 3V A/D converter designed for digitizing high frequency, wide dynamic range signals. The LTC2249 is perfect for demanding imaging and communications applications with AC performance that includes 73dB SNR and 90dB SFDR for signals well beyond the Nyquist frequency
Haupteigenschaften
-
ADC Resolution14 Bit
-
ADC Sampling Rate80M SPS
Empfohlene Bauteile (5)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
LTC2249IUH#PBF | Analog Devices | Analog to Digital Converters - ADCs | 1-Channel Single ADC Pipelined 80Msps 14-bit Parallel 32-Pin QFN EP Tube | In den Warenkorb | |
|
|
LTC2249IUH#TRPBF | Analog Devices | Analog to Digital Converters - ADCs | 1-Channel Single ADC Pipelined 80Msps 14-bit Parallel 32-Pin QFN EP T/R | In den Warenkorb | |
|
|
LTC2249IUH#TR | Analog Devices | Analog to Digital Converters - ADCs | 1-Channel Single ADC Pipelined 80Msps 14-bit Parallel 32-Pin QFN EP T/R | In den Warenkorb | |
|
|
LTC2249CUH#PBF | Analog Devices | Analog to Digital Converters - ADCs | 1-Channel Single ADC Pipelined 80Msps 14-bit Parallel 32-Pin QFN EP Tube | In den Warenkorb | |
|
|
LTC2249CUH#TRPBF | Analog Devices | Analog to Digital Converters - ADCs | 1-Channel Single ADC Pipelined 80Msps 14-bit Parallel 32-Pin QFN EP T/R | In den Warenkorb | |
