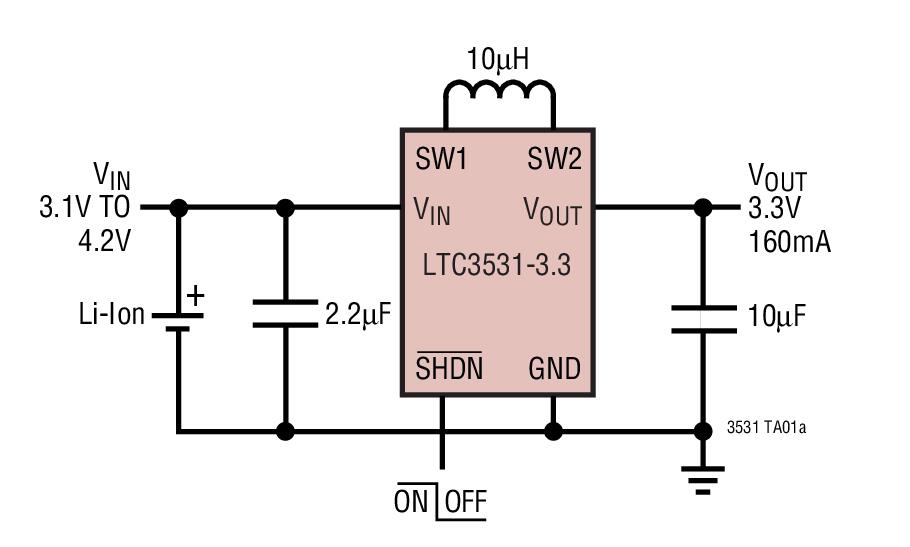

Typical Application for LTC3531 - 200mA Buck-Boost Synchronous DC/DC Converters
Referenzdesign unter Verwendung des Teils LTC3531 von Analog Devices
Bilder
1 / 1
Zugehörige Dokumente
Für Endprodukte
- GPS
- Handheld Instruments
- MP3 Player
- Personal Digital Assistant
- Portable Computers
Beschreibung
- Typical Application for the LTC3531/LTC3531-3.3/LTC3531-3 are synchronous buck-boost DC/DC converters that operate from input voltages above, below or equal to the output voltage
Haupteigenschaften
-
Conversion TypeDC to DC
Empfohlene Bauteile (4)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
LTC3531EDD | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 1.8V to 5.5V Synchronous Non-Inverting/Inverting/Step Up/Step Down Single-Out 2V to 5V 8-Pin DFN EP | In den Warenkorb | |
|
|
LTC3531EDD#TR | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 1.8V to 5.5V Synchronous Non-Inverting/Inverting/Step Up/Step Down Single-Out 2V to 5V 8-Pin DFN EP T/R | In den Warenkorb | |
|
|
LTC3531EDD#TRPBF | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 1.8V to 5.5V Synchronous Non-Inverting/Inverting/Step Up/Step Down Single-Out 2V to 5V 8-Pin DFN EP T/R | In den Warenkorb | |
|
|
LTC3531EDD#PBF | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 1.8V to 5.5V Synchronous Non-Inverting/Inverting/Step Up/Step Down Single-Out 2V to 5V 8-Pin DFN EP Tube | In den Warenkorb | |
