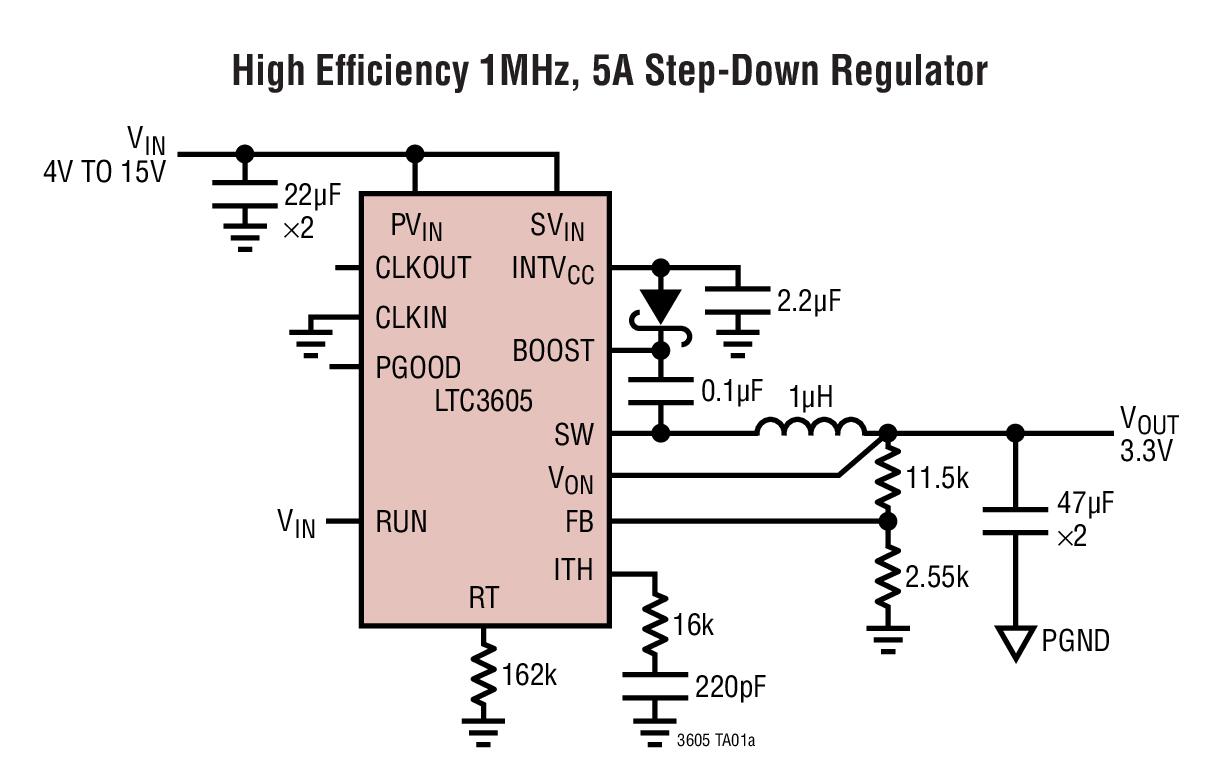

Typical Application for LTC3605 - 15V, 5A Synchronous Step-Down Regulator
Referenzdesign unter Verwendung des Teils LTC3605 von Analog Devices
Bilder
1 / 1
Zugehörige Dokumente
Für Endprodukte
- Battery Powered Equipment
- PoL Power Supply
- Portable Medical Instrumentation
- Power Supplies
Beschreibung
- Typical Application for the LTC3605 is a high efficiency, monolithic synchronous buck regulator using a phase lockable controlled on-time constant frequency, current mode architecture
Haupteigenschaften
-
Conversion TypeDC to DC
-
TopologyBuck
Empfohlene Bauteile (4)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
LTC3605EUF#TRPBF | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 4V to 15V Synchronous Step Down Single-Out 0.6V to 14.85V 5A 24-Pin QFN EP T/R | In den Warenkorb | |
|
|
LTC3605IUF#TRPBF | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 4V to 15V Synchronous Step Down Single-Out 0.6V to 19.8V 5A 24-Pin QFN EP T/R | In den Warenkorb | |
|
|
LTC3605EUF#PBF | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 4V to 15V Synchronous Step Down Single-Out 0.6V to 14.85V 5A 24-Pin QFN EP Tube | In den Warenkorb | |
|
|
LTC3605IUF#PBF | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 4V to 15V Synchronous Step Down Single-Out 0.6V to 19.8V 5A 24-Pin QFN EP Tube | In den Warenkorb | |
