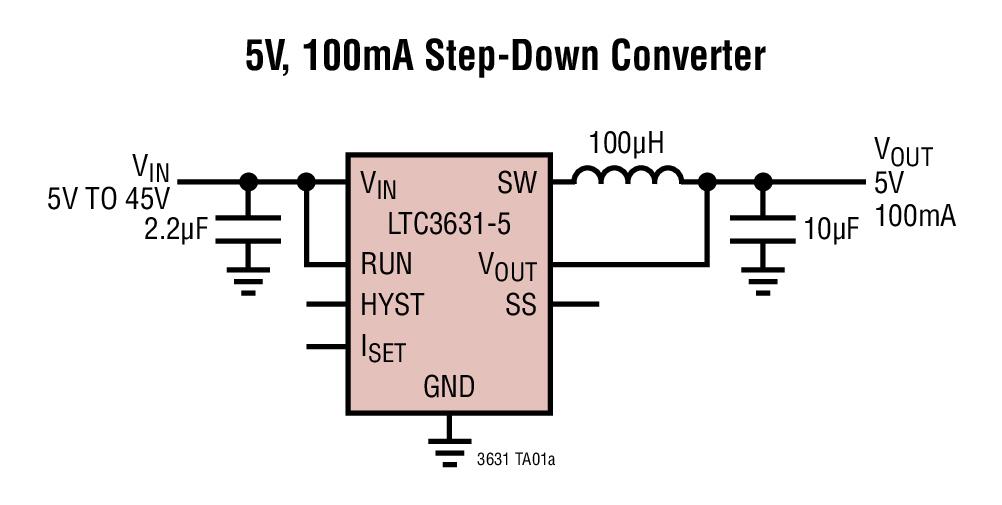

Typical Application for LTC3631 - High Efficiency, High Voltage 100mA Synchronous Step-Down Converter
Referenzdesign unter Verwendung des Teils LTC3631 von Analog Devices
Bilder
1 / 1
Für Endprodukte
- Automotive Power Supply
- Battery Powered Systems
- Distributed Power System
- Portable Instrumentation
Beschreibung
- Typical Application for LTC3631 - High Efficiency, High Voltage 100mA Synchronous Step-Down Converter. The LTC3631 is a high voltage, high efficiency step-down DC/DC converter with internal high side and synchronous power switches that draws only 12uA typical DC supply current at no load while maintaining output voltage regulation
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage5 to 45 V
-
Output Voltage5 V
-
TopologyBuck- Synchronous
