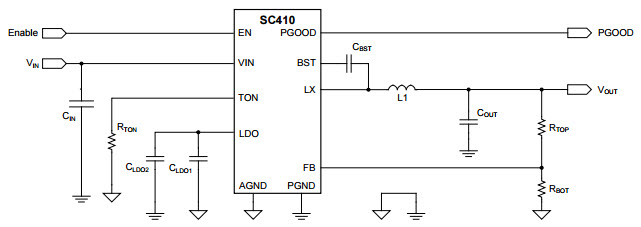

Typical Application for SC410 2A EcoSpeed Step-Down Regulator with LDO and Power Save
Referenzdesign unter Verwendung des Teils SC410 von Semtech
Bilder
1 / 1
Für Endprodukte
- Power Supplies
Beschreibung
- Typical Application for SC410 2A EcoSpeed Step-Down Regulator with LDO and Power Save. The SC410 is an integrated, synchronous 3A EcoSpeed step-down regulator. It incorporates advanced, patented adaptive on-time architecture to achieve bestin-class dynamic performance using point-of-load applications. The input voltage range is 5.5V to 24V with a programmable output voltage from 0.75V up to 7.5V. The device features an internal LDO and ultrasonic PSAVE mode for high efficiency across the output load range
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage5.5 to 24 V
-
Output Voltage0.75 to 7.5 V
-
Output Current3 A
-
TopologyLDO
Empfohlene Bauteile (1)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
SC410MLTRT | Semtech | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 5.5V to 24V Synchronous Step Down Single-Out 0.75V to 7.5V 3A 10-Pin MLPD EP T/R | In den Warenkorb | |
