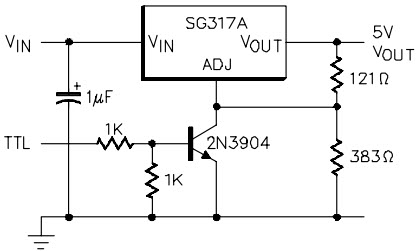

Typical Application for SG117 5V Regulator with shut-down
Referenzdesign unter Verwendung des Teils SG117 von Microchip Technology
Bilder
1 / 1
Für Endprodukte
- Multi Voltage System
Beschreibung
- Typical Application for SG117 5V Regulator with shut-down. The SG117A Series are 3-terminal positive adjustable voltage regulators which offer improved performance over the original 117 design. A major feature of the SG117A is reference voltage tolerance guaranteed within ± 1%, allowing an overall power supply tolerance to be better than 3% using inexpensive 1% resistors. Line and load regulation performance has been improved as well
