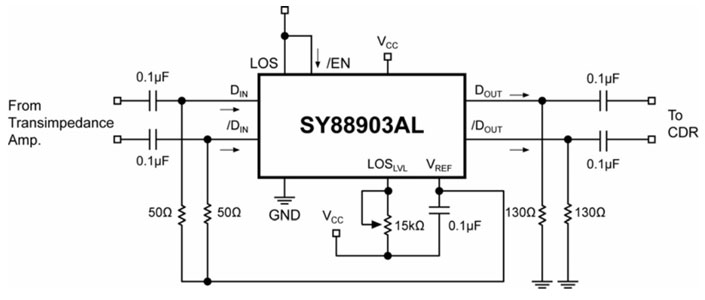

Typical Application for SY88903AL 3.3V, Burst Mode 1.25Gbps PECL High-Sensitivity Limiting Post Amplifier with TTL Loss-of-Signal
Referenzdesign unter Verwendung des Teils SY88903AL von Microchip Technology
Bilder
1 / 1
Für Endprodukte
- Instrumentation and Measurement
Beschreibung
- Typical Application for SY88903AL 3.3V, Burst Mode 1.25Gbps PECL High-Sensitivity Limiting Post Amplifier with TTL Loss-of-Signal. The SY88903AL, burst mode, high-sensitivity limiting post amplifier is designed for use in fiber-optic receivers, specially optimized for passive optical networks (PONs). The device connects to typical transimpedance amplifiers (TIAs). The linear signal output from TIAs can contain significant amounts of noise and may vary in amplitude over time. The SY88903AL quantizes these signals and outputs PECL level waveforms
Empfohlene Bauteile (2)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
SY88903ALKG-TR | Microchip Technology | Special Purpose Amplifiers | SP Amp Limiting Post Amplifier Single 3.6V 10-Pin MSOP T/R | In den Warenkorb | |
|
|
SY88903ALKG | Microchip Technology | Special Purpose Amplifiers | SP Amp Limiting Post Amplifier Single 3.6V 10-Pin MSOP Tube | In den Warenkorb | |
