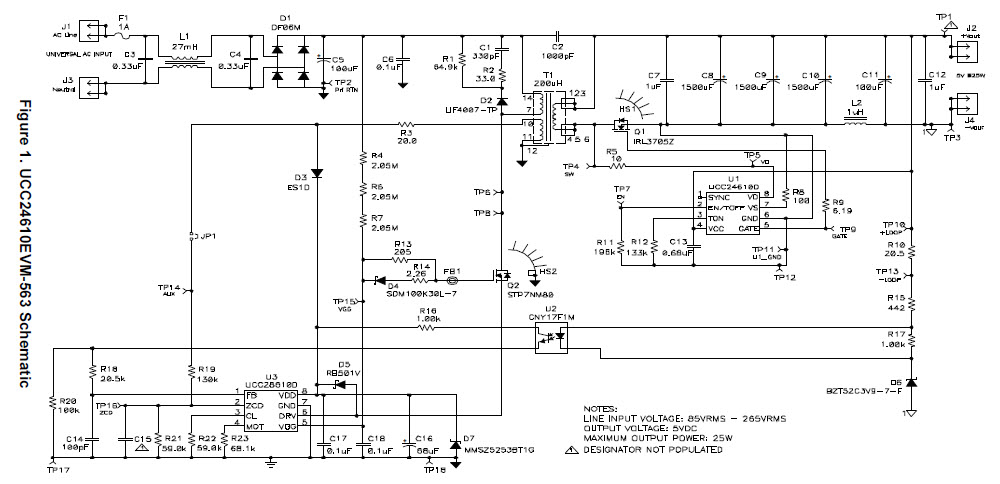

UCC24610EVM-563, Evaluation Board for UCC24610, 5-V, 25-W Flyback Converter With Secondary-Side Synchronous Rectification
Referenzdesign unter Verwendung des Teils UCC24610D von Texas Instruments
Bilder
1 / 1
Für Endprodukte
- Adaptor AC to DC Supply
- Power Supplies
Beschreibung
- UCC24610EVM-563, is a 25W, 5V off-line DCM Flyback converter with secondary side synchronous rectification controlled by the UCC24610. The primary side control is provided by the UCC28610 Green-Mode Flyback Controller
Haupteigenschaften
-
Input Voltage85 to 265(AC) V
-
Output Voltage4.6 to 5.6 V
Empfohlene Bauteile (7)
