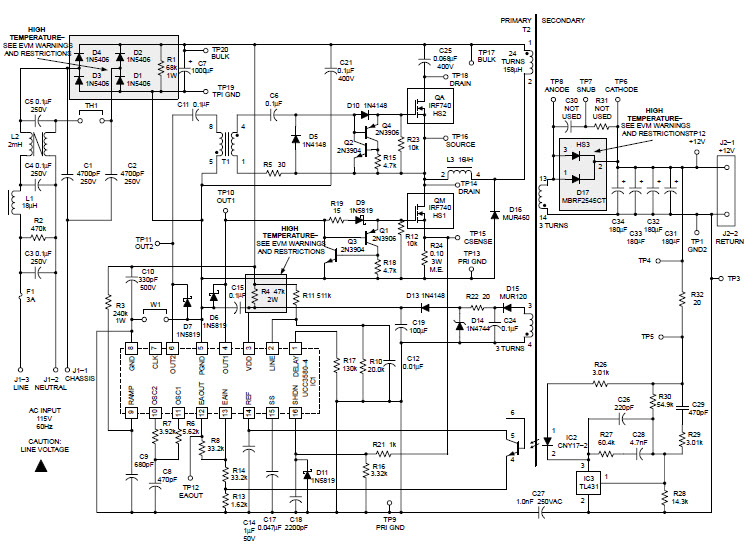

UCC3580EVM Flyback Converter, Active Clamp Evaluation Board
Referenzdesign unter Verwendung des Teils UCC3580N-4 von Texas Instruments
Bilder
1 / 1
Zugehörige Dokumente
Für Endprodukte
- Power Supplies
Beschreibung
- UCC3580EVM Flyback Converter, Active Clamp. This EVM is originally configured as an active-clamp flyback converter. Instructions and parts list are included in order to reconfigure the UCC3580EVM as a hard-switched flyback converter. Both configurations use the UCC3580 PWM controller. The active clamp configuration operates noticeably more efficiently than the hard switched configuration. Most of the efficiency differences will be seen in the primary side components
Haupteigenschaften
-
Conversion TypeAC to DC
-
Input Voltage115 (AC) V
-
Output Voltage12 V
-
Output Current10 A
-
TopologyFlyback
Empfohlene Bauteile (11)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
TL431CLP | Texas Instruments | Voltage References | V-Ref Adjustable 2.495V to 36V 100mA 3-Pin TO-92 Bulk | In den Warenkorb | |
|
CNY171SR2M | onsemi | Transistor and Photovoltaic Output Photocouplers | DC-IN 1-CH Transistor With Base DC-OUT 6-Pin PDIP SMD T/R | In den Warenkorb | |
|
|
TL431CLPR | Texas Instruments | Voltage References | V-Ref Adjustable 2.495V to 36V 100mA 3-Pin TO-92 T/R | In den Warenkorb | |
|
|
TL431CLPM | Texas Instruments | Voltage References | V-Ref Adjustable 2.495V to 36V 100mA 3-Pin TO-92 Ammo | In den Warenkorb | |
|
|
CNY171SVM | onsemi | Transistor and Photovoltaic Output Photocouplers | Optocoupler DC-IN 1-CH Transistor With Base DC-OUT 6-Pin PDIP SMD White Bulk | In den Warenkorb | |
|
CNY171M | onsemi | Transistor and Photovoltaic Output Photocouplers | Optocoupler DC-IN 1-CH Transistor With Base DC-OUT 6-Pin PDIP Bag | In den Warenkorb | |
|
|
TL431CLP-Z | Texas Instruments | Voltage References | ADJUSTABLE PRECISION SHUNT REGULATORS | In den Warenkorb | |
|
|
CNY171SR2VM | onsemi | Transistor and Photovoltaic Output Photocouplers | Optocoupler DC-IN 1-CH Transistor With Base DC-OUT 6-Pin PDIP SMD White T/R | In den Warenkorb | |
|
|
CNY171VM | onsemi | Transistor and Photovoltaic Output Photocouplers | Optocoupler DC-IN 1-CH Transistor With Base DC-OUT 6-Pin PDIP White Bulk | In den Warenkorb | |
|
|
CNY171TVM | onsemi | Transistor and Photovoltaic Output Photocouplers | Optocoupler DC-IN 1-CH Transistor With Base DC-OUT 6-Pin PDIP White Bulk | In den Warenkorb | |
|
|
CNY171SM | onsemi | Transistor and Photovoltaic Output Photocouplers | DC-IN 1-CH Transistor With Base DC-OUT 6-Pin PDIP SMD Bag | In den Warenkorb | |
