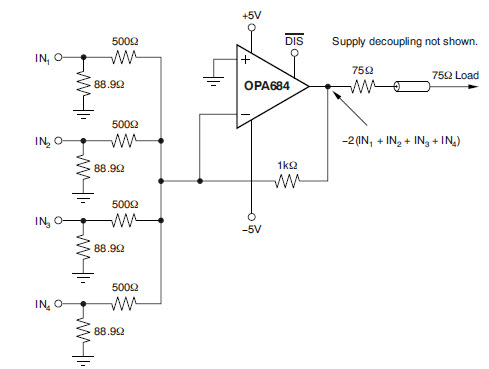

Video Summing Amplifier Provides Greater Than 120MHz Bandwidth
Referenzdesign unter Verwendung des Teils OPA684 von Texas Instruments
Bilder
1 / 1
Zugehörige Dokumente
Für Endprodukte
- Digital Camera
- Video and Imaging
Beschreibung
- Low Power, High-Speed Current-Feedback Amplifier for Video Summing Amplifier Provides Greater Than 120MHz Bandwidth
Haupteigenschaften
-
Gain-2V/V|-1V/V
Empfohlene Bauteile (8)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
OPA684ID | Texas Instruments | Operational Amplifiers - Op Amps | Op Amp Single High Speed Amplifier ±6V/12V 8-Pin SOIC Tube | In den Warenkorb | |
|
|
OPA684IDR | Texas Instruments | Operational Amplifiers - Op Amps | Op Amp Single High Speed Amplifier ±6V/12V 8-Pin SOIC T/R | In den Warenkorb | |
|
OPA684IDBVR | Texas Instruments | Operational Amplifiers - Op Amps | Op Amp Single High Speed Amplifier ±6V/12V 6-Pin SOT-23 T/R | In den Warenkorb | |
|
|
OPA684IDG4 | Texas Instruments | Operational Amplifiers - Op Amps | Op Amp Single Low Power Amplifier ±6V/12V 8-Pin SOIC Tube | In den Warenkorb | |
|
|
OPA684IDBVT | Texas Instruments | Operational Amplifiers - Op Amps | Op Amp Single High Speed Amplifier ±6V/12V 6-Pin SOT-23 T/R | In den Warenkorb | |
|
|
OPA684IDRG4 | Texas Instruments | Operational Amplifiers - Op Amps | Op Amp Single Low Power Amplifier ±6V/12V 8-Pin SOIC T/R | In den Warenkorb | |
|
|
OPA684IDBVTG4 | Texas Instruments | Operational Amplifiers - Op Amps | Op Amp Single High Speed Amplifier ±6V/12V 6-Pin SOT-23 T/R | In den Warenkorb | |
|
|
OPA684IDBVRG4 | Texas Instruments | Operational Amplifiers - Op Amps | Op Amp Single High Speed Amplifier ±6V/12V 6-Pin SOT-23 T/R | In den Warenkorb | |
