±15V Analog Amplifier for Video/Imaging
Referenzdesign unter Verwendung des Teils DAC0800 von Texas Instruments
Bilder
1 / 1
Für Endprodukte
- Video and Imaging
Beschreibung

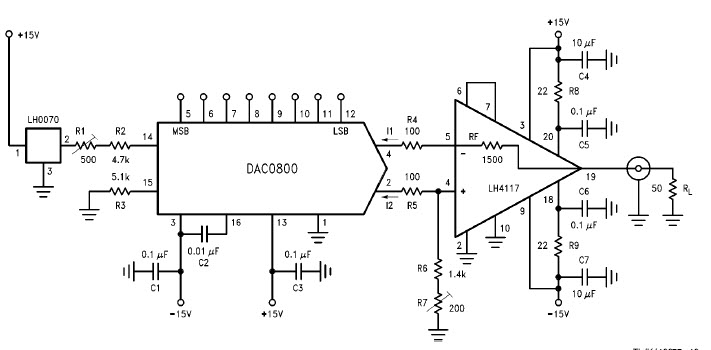

- Connecting the DAC to the LH4117. It transforms the 8 logic input signals to a 256 step analog signal ranging from b3V for all bits LOW to a 3V for all bits HIGH
Haupteigenschaften
-
Number of SuppliesDual
-
Supply Voltage±15 V
