50W, 5V DC to DC Single Output Power Supply
Referenzdesign unter Verwendung des Teils UCC3809 von Texas Instruments
Bilder
1 / 1
Für Endprodukte
- Power Supplies
Beschreibung

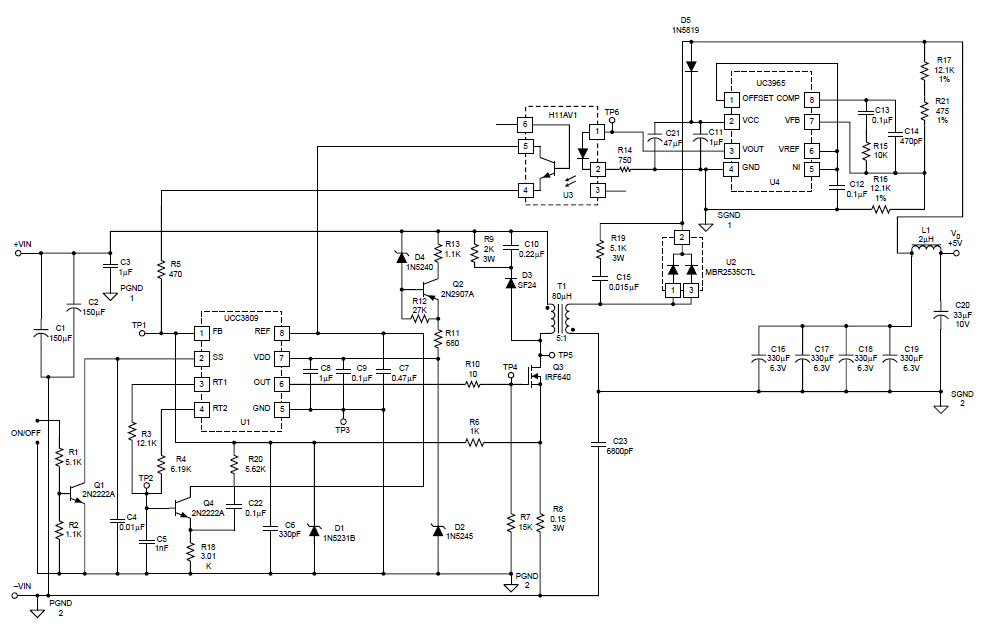

- UCC3809 flyback power stage is a single output DC to DC converters at power levels of 50 Watts
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage-72 to -32 V
-
Output Voltage5 V
-
Output Current0 to 10 A
-
Output Power50 W
-
TopologyFlyback
