7, 8-LEDs Dimming LED Driver for Industrial LED Lighting
Referenzdesign unter Verwendung des Teils LM3445MM von Texas Instruments
Bilder
1 / 1
Zugehörige Dokumente
Für Endprodukte
- Industrial LED Lighting
- Residential Lighting
- Solid state lighting
Beschreibung

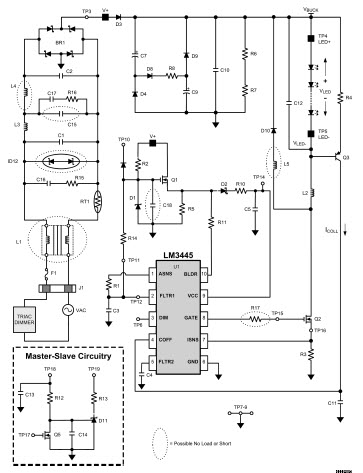

- Demonstration Board included in this shipment converts 90VAC to 135VAC input, and drives seven, or eight series connected LED's at 350mA average current. LM3445 switching frequency is set at a nominal 225KHz
Haupteigenschaften
-
Input Voltage90 to 135 (AC) V
-
Output Current0.35 A
-
Number of Derived Elements7|8
