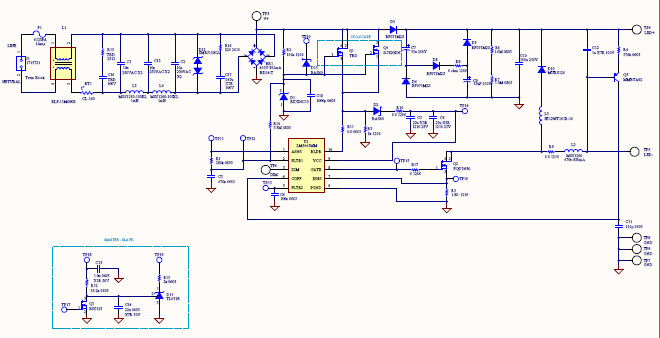

7, 8-LEDs Dimming LED Driver for Solid state lighting
Referenzdesign unter Verwendung des Teils LM3445MM von Texas Instruments
Bilder
1 / 1
Zugehörige Dokumente
Für Endprodukte
- Industrial LED Lighting
- Residential Lighting
- Solid state lighting
Beschreibung
- Circuit converts 90 V AC to 135 V AC input, and drives seven, or eight series connected LED's from 300 to 600mA average current. The LM3445 switching frequency is set at a nominal 225kHz
Haupteigenschaften
-
Input Voltage80 to 135 (AC) V
-
Output Voltage32 V
-
Output Current0.3 to 0.6 A
-
Number of Derived Elements7|8
Empfohlene Bauteile (6)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
TL431BIDBZRG4 | Texas Instruments | Voltage References | V-Ref Adjustable 2.495V to 36V 100mA 3-Pin SOT-23 T/R | In den Warenkorb | |
|
|
TL431BIDBZR | Texas Instruments | Voltage References | V-Ref Adjustable 2.495V to 36V 100mA 3-Pin SOT-23 T/R | In den Warenkorb | |
|
LM3445MM/NOPB | Texas Instruments | LED Drivers | LED Driver 2850uA Supply Current 10-Pin VSSOP T/R | In den Warenkorb | |
|
|
LM3445MMX/NOPB | Texas Instruments | LED Drivers | LED Driver 2850uA Supply Current 10-Pin VSSOP T/R | In den Warenkorb | |
|
|
LM3445MMX/NOPB | Texas Instruments | LED Drivers | LED Driver 2850uA Supply Current 10-Pin VSSOP T/R | In den Warenkorb | |
|
|
LM3445MM/NOPB | Texas Instruments | LED Drivers | LED Driver 2850uA Supply Current 10-Pin VSSOP T/R | In den Warenkorb | |
