ADS54J40EVM, Evaluation Module for ADS54J69 16-bit Analog to Digital Converter

Beschreibung

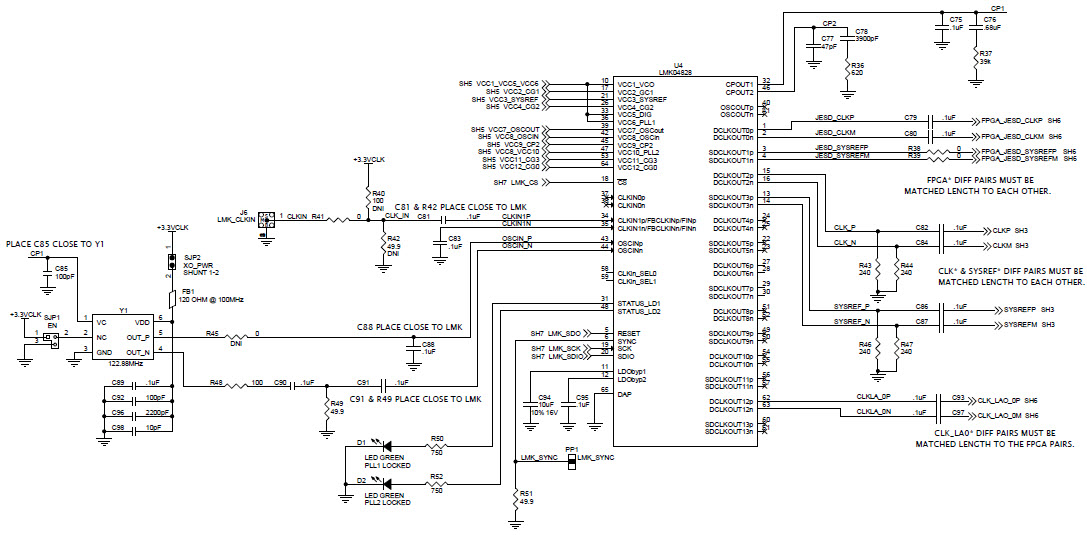

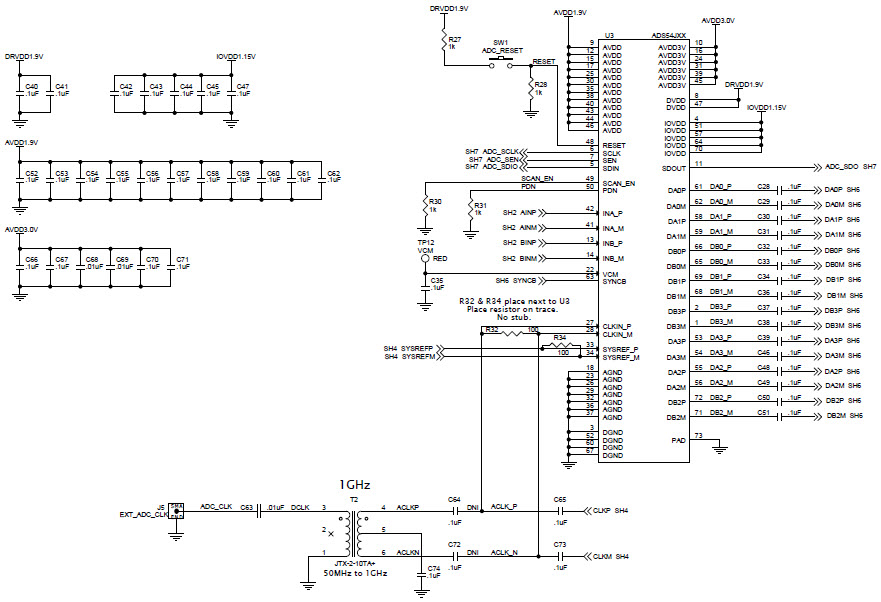

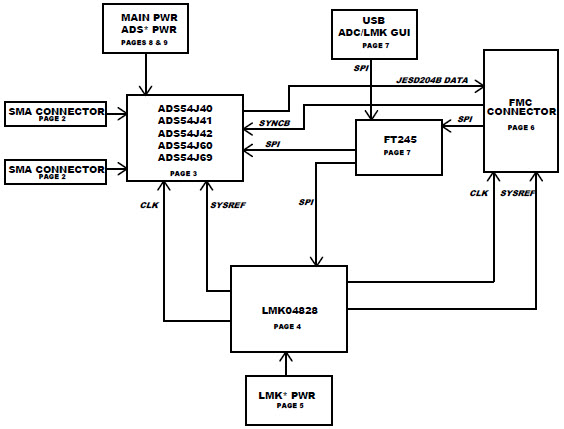

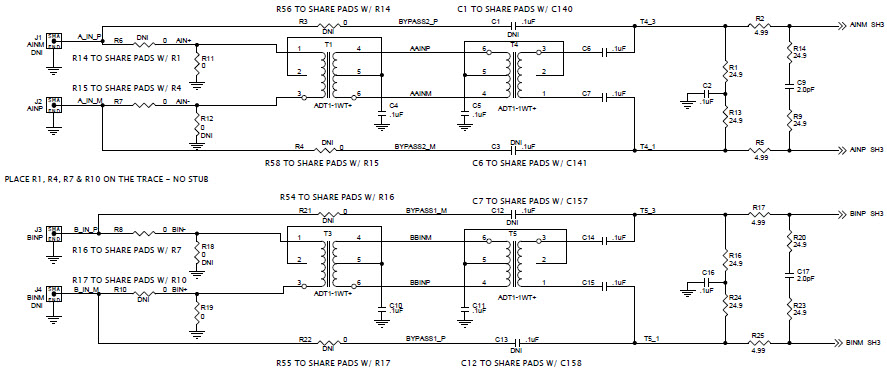

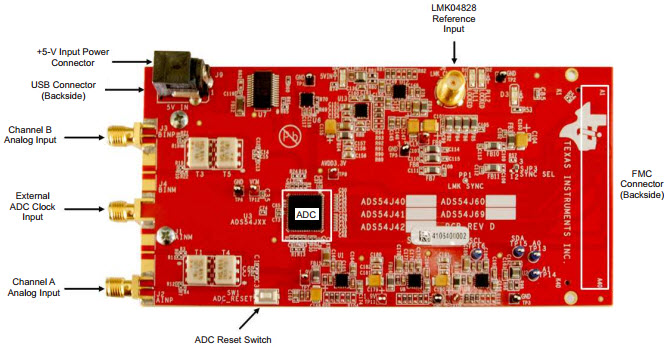

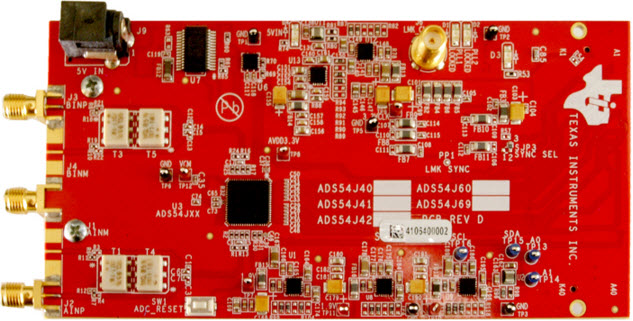

• ADS54J40EVM, Evaluation Module (EVM) that allows for the evaluation of ADS54J69 and LMK04828 clock jitter cleaner. The ADS54J69 is a low power, 16-bit, 500-MSPS analog to digital converter (ADC) with a buffered analog input and outputs featuring a JESD204B interface. The EVM has transformer coupled analog inputs to accommodate a wide range of signal sources and frequencies. The LMK04828 provides an ultra-low-jitter and phase noise ADC sample clock along with System Reference clocks and Device Sample clock for a complete JESD204B subclass 1 clocking solution
