LM3424BKBSTEVAL/NOPB, Evaluation Board using LM3424 buck-boost current regulator, high frequency PWM dimming
Referenzdesign unter Verwendung des Teils LM3424MH von Texas Instruments
Bilder
1 / 1
Zugehörige Dokumente
Für Endprodukte
- Automotive and Transportation
- Illumination
- Indoor & Outdoor Lighting
Beschreibung

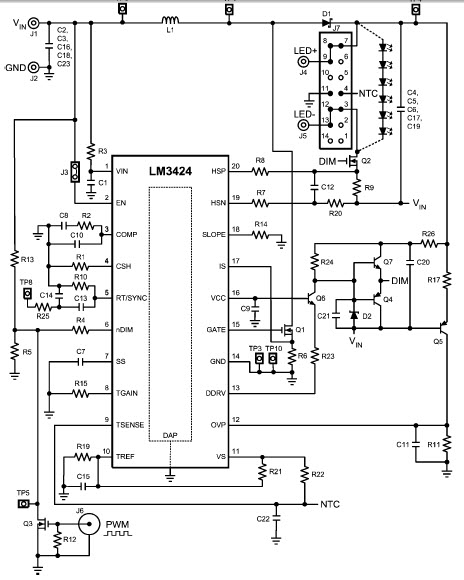

- LM3424BKBSTEVAL/NOPB, Evaluation Board using LM3424 NFET controller used with a buck-boost current regulator. It is designed to drive 4 to 10 LEDs at a maximum average LED current of 1A from a DC input voltage of 10 to 70V. It is including thermal foldback, analog dimming, external switching frequency synchronization, and high frequency PWM dimming, among others
Haupteigenschaften
-
Input Voltage10 to 70 V
-
Output Voltage3.5 V
-
Output Current1 A
-
Number of Derived Elements4 to 10
