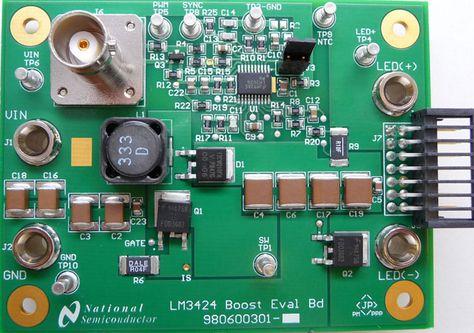

LM3424BSTEVAL/NOPB, Evaluation Board using LM3424 boost current regulator, high frequency PWM dimming
Referenzdesign unter Verwendung des Teils LM3424MH von Texas Instruments
Bilder
1 / 2
Zugehörige Dokumente
Für Endprodukte
- Automotive and Transportation
- Illumination
- Indoor & Outdoor Lighting
Beschreibung

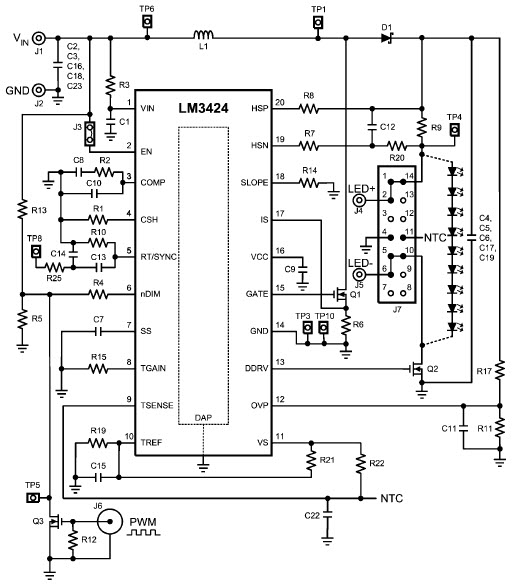

- LM3424BSTEVAL/NOPB, Evaluation Board using LM3424 NFET controller used with a boost current regulator. It is designed to drive 9 to 12 LEDs at a maximum average LED current of 1A from a DC input voltage of 10 to 26V. It is including thermal foldback, analog dimming, external switching frequency synchronization, and high frequency PWM dimming, among others. The boost circuit can be easily redesigned for different specifications by changing only a few components
Haupteigenschaften
-
Input Voltage10 to 26 V
-
Output Voltage3.5 V
-
Output Current1 A
-
Number of Derived Elements9 to 12
Empfohlene Bauteile (4)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
LM3424MH/NOPB | Texas Instruments | LED Drivers | LED Driver 5V/9V/12V/15V/18V/24V 20-Pin HTSSOP EP Tube | In den Warenkorb | |
|
|
LM3424MHX/NOPB | Texas Instruments | LED Drivers | LED Driver 5V/9V/12V/15V/18V/24V 20-Pin HTSSOP EP T/R | In den Warenkorb | |
|
|
LM3424MH/NOPB | Texas Instruments | LED Drivers | LED Driver 5V/9V/12V/15V/18V/24V 20-Pin HTSSOP EP Tube | In den Warenkorb | |
|
|
LM3424MHX/NOPB | Texas Instruments | LED Drivers | LED Driver 5V/9V/12V/15V/18V/24V 20-Pin HTSSOP EP T/R | In den Warenkorb | |
