LT1370 Demo Board, 6A Switch 2.7V to 12V Input 5V or 12V Output
Referenzdesign unter Verwendung des Teils LT1370CR von Analog Devices
Bilder
1 / 1
Zugehörige Dokumente
Für Endprodukte
- Laptop
- Notebook
Beschreibung

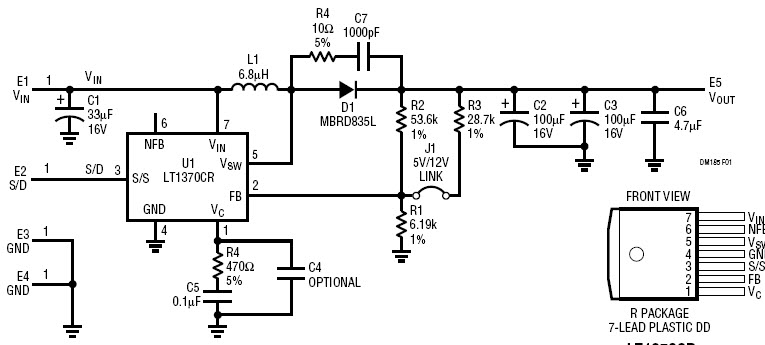

- Demonstration board DC185 is a complete DC/DC step down regulator using the LT1370 constant frequency, high efficiency converter in a 7-pin DD package. High frequency switching allows the use of small inductors, making this all surface mount solution ideal for space-conscious systems
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage2.7 to 12 V
-
Output Voltage5|12 V
-
Output Current6 to 10 A
-
Efficiency90 %
-
TopologyBuck
Empfohlene Bauteile (3)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
LT1370CR | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 2.4V to 30V Non-Inv/Inv/Step Up/Step Down Single-Out 1.245V to 35V 6A 8-Pin(7+Tab) DDPAK | In den Warenkorb | |
|
|
LT1370CR#PBF | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 2.4V to 30V Non-Inv/Inv/Step Up/Step Down Single-Out 1.245V to 35V 6A 8-Pin(7+Tab) DDPAK Tube | In den Warenkorb | |
|
|
LT1370CR#TRPBF | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 2.4V to 30V Non-Inv/Inv/Step Up/Step Down Single-Out 1.245V to 35V 6A 8-Pin(7+Tab) DDPAK T/R | In den Warenkorb | |
