LT3800, 6.5V-55V to 5V, 10A DC/DC Converter
Referenzdesign unter Verwendung des Teils LT3800 von Analog Devices
Bilder
1 / 1
Für Endprodukte
- Automotive and Transportation
- Backplane Distributed Power
- Industrial Control
- Telecom Power Supply
Beschreibung

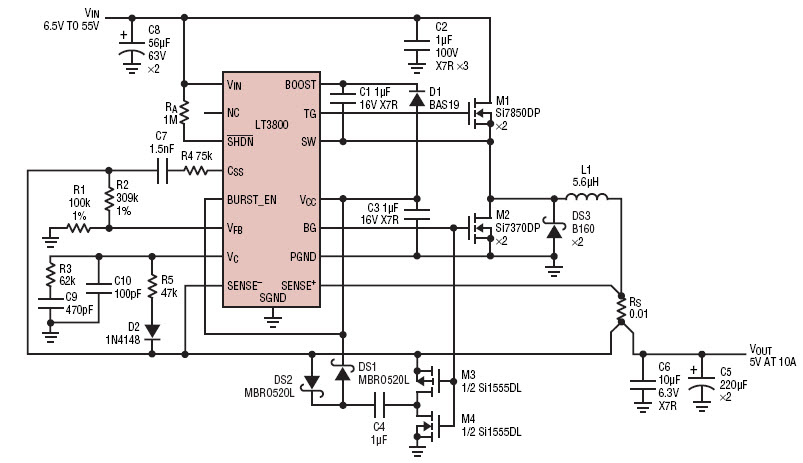

- 6.5V-55V to 5V 10A LT3800 DC/DC converter features charge pump doubler VCC refresh and current limit foldback. The Circuit uses an external Si1555DL MOSFET pair (M3, M4) to create a charge pump doubler that steps up the output voltage
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage6.5 to 55 V
-
Output Voltage5 V
-
Output Current10 A
-
Efficiency93 %
-
TopologyBuck
Empfohlene Bauteile (6)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
LT3800EFE#PBF | Analog Devices | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Down 210kHz 16-Pin TSSOP EP Tube | In den Warenkorb | |
|
|
LT3800EFE | Analog Devices | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Down 210kHz 16-Pin TSSOP EP | In den Warenkorb | |
|
|
LT3800EFE#TRPBF | Analog Devices | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Down 210kHz 16-Pin TSSOP EP T/R | In den Warenkorb | |
|
|
LT3800IFE#PBF | Analog Devices | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Down 210kHz 16-Pin TSSOP EP Tube | In den Warenkorb | |
|
|
LT3800IFE#TRPBF | Analog Devices | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Down 210kHz 16-Pin TSSOP EP T/R | In den Warenkorb | |
|
|
LT3800IFE#TR | Analog Devices | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Down 210kHz 16-Pin TSSOP EP T/R | In den Warenkorb | |
