LTC1736, CPU Core Voltage Regulator for 1-Step Application
Referenzdesign unter Verwendung des Teils LTC1736 von Analog Devices
Bilder
1 / 1
Für Endprodukte
- Laptop
- Notebook
- Personal Digital Assistant
- Processor Power Management
Beschreibung

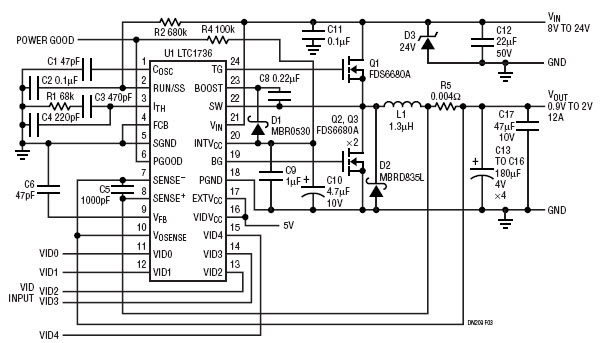

- LTC1736, CPU Core Voltage Regulator for 1-Step Application. The LTC1736 circuit redesigned for 8V to 24V inputs. 720mF of output capacitance is required for a 0.1V transient response for a 0.2A to 12A load step from a 1.5V output
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage8 to 24 V
-
Output Voltage0.9 to 2 V
-
Output Current12 A
-
TopologyBuck
