LTC1736, CPU Core Voltage Regulator for 2-Step Application
Referenzdesign unter Verwendung des Teils LTC1736 von Analog Devices
Bilder
1 / 1
Für Endprodukte
- Laptop
- Notebook
- Personal Digital Assistant
- Processor Power Management
Beschreibung

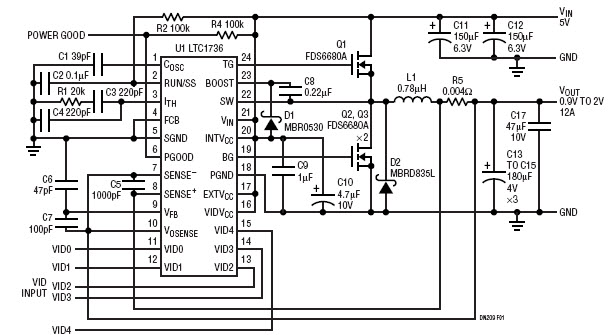

- Circuit shows LTC1736 featuring a 5-bit, digitally controlled output voltage, from 0.9 to 2V at 12A from a 5V input. The LTC1736 is a constant frequency current mode, synchronous-buck controller, exactly like the popular LTC1735, but with 5-bit VID and a Power Good output
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage5 V
-
Output Voltage0.9 to 2 V
-
Output Current12 A
-
Efficiency95 %
-
TopologyBuck
