PMP10613.2, Xilinx Zynq 7000 Series (XC7Z045) 20W Reference Design
Referenzdesign unter Verwendung des Teils LMZ31503RUQ von Texas Instruments

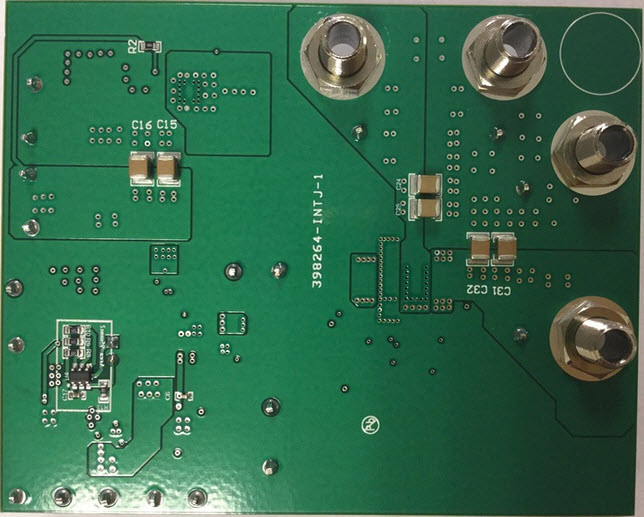

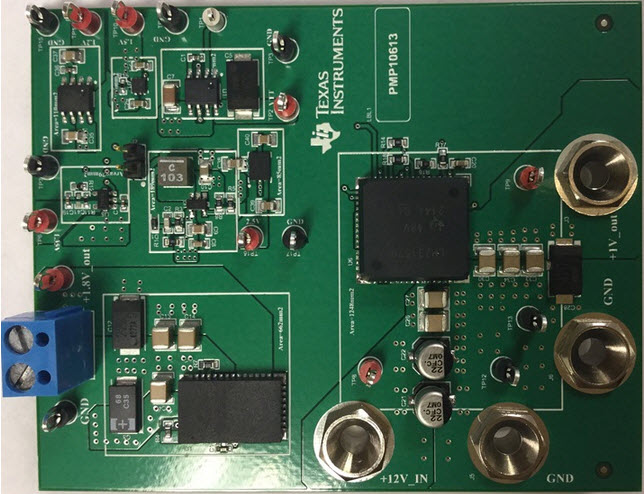

Bilder
1 / 3
Zugehörige Dokumente
Für Endprodukte
- Automatic Test Equipment
- Communications and Telecom
- Infrastructure
- Power Distribution Control
Beschreibung
- PMP10613.2, Xilinx Zynq 7000 Series (XC7Z045) 20W Reference Design. The PMP10613 reference design provides all the power supply rails necessary to power Xilinx Zynq 7000 series (XC7Z045) FPGA. This design uses several LMZ3 series modules, LDOs and a DDR termination regulator to provide all the necessary rails to power the FPGA. It also features one LM3880 for power up and power down sequencing. This design uses a 12V input
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage10.8 to 13.2 V
-
Output Voltage1.8 V
-
Output Current3 A
-
Output Power5.4 W
-
TopologyBuck- Integrated Switch
Empfohlene Bauteile (15)
