PMP10739, 90 to 110Vin, 12Vout @ 0.3A Non-Sync Buck Converter Reference Design
Referenzdesign unter Verwendung des Teils UCC28700DBV von Texas Instruments

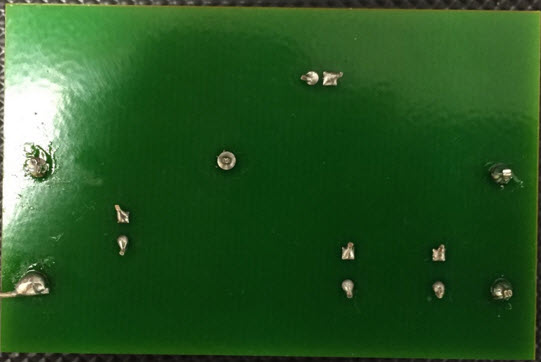

Bilder
1 / 3
Für Endprodukte
- Power Supplies
Beschreibung
- PMP10739, 90 to 110Vin, 12Vout @ 0.3A Non-Sync Buck Converter Reference Design. The PMP10739 is a 3.6W buck converter using the UCC28700 controller IC. The design accepts an input voltage of 90Vin to 110Vin and provides an output of 12Vout capable of supplying 0.3A of current to the load. The UCC28700 has a frequency dithering feature for reduced EMI
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage90 to 110 V
-
Output Voltage12 V
-
Output Current0.3 A
-
Output Power3.6 W
-
TopologyBuck- Non Sync
Empfohlene Bauteile (2)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
UCC28700DBVT | Texas Instruments | AC to DC Switching Converters | AC to DC Switching Converter Flyback 23V 140kHz T/R 6-Pin SOT-23 | In den Warenkorb | |
|
|
UCC28700DBVR | Texas Instruments | AC to DC Switching Converters | AC to DC Switching Converter Flyback 23V 140kHz T/R 6-Pin SOT-23 | In den Warenkorb | |
