PMP2616, 165Vac - 250Vac, 12V/0.8A Reference Design
Referenzdesign unter Verwendung des Teils UCC28600D von Texas Instruments
Bilder
1 / 1
Zugehörige Dokumente
Für Endprodukte
- Consumer Electronics
Beschreibung

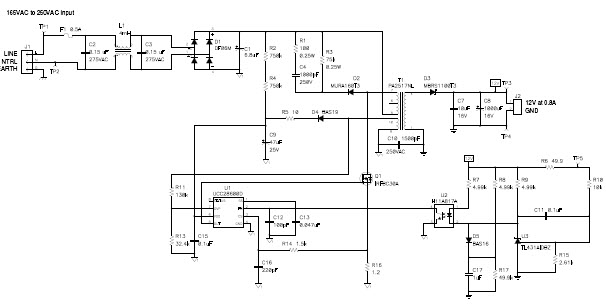

- PMP2616, 165Vac - 250Vac, 12V/0.8A Reference Design. From the European mains an isolated quasi-resonant Flyback delivers 12V @ 0.8A with very low stand-by losses. Very suitable for general purpose supply
Haupteigenschaften
-
Conversion TypeAC to DC
-
Input Voltage165 to 250 (AC) V
-
Output Voltage-12 V
-
Output Current0.8 A
-
Output Power9.6 W
-
TopologyFlyback
