PMP4028, 36V-72VDC Input Active Clamp forward With Dual 12V/50W Outputs
Referenzdesign unter Verwendung des Teils UCC2897APW von Texas Instruments
Bilder
1 / 1
Für Endprodukte
- Communications and Telecom
Beschreibung

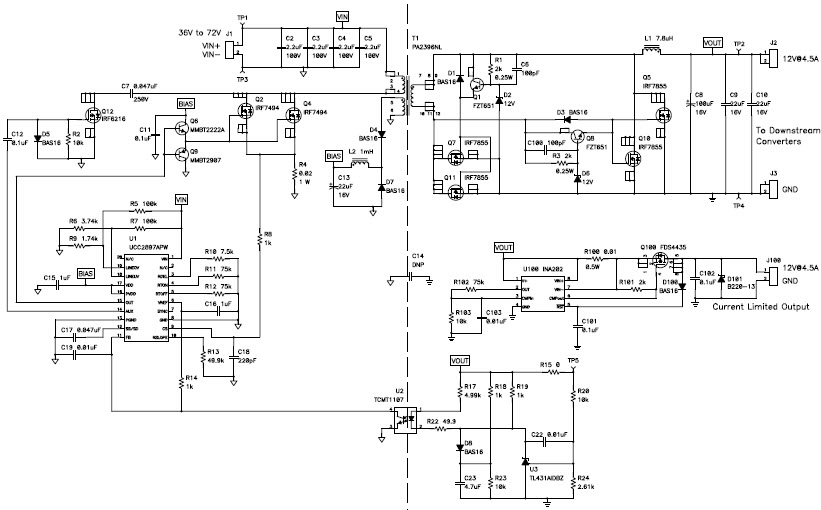

- PMP4028, 36V-72VDC Input Active Clamp forward With Dual 12V/50W Outputs. Power supply design generates a 12V/100W isolated output from a standard 48V telecom input. An active clamp forward converter is controlled by the UCC2897A. The INA202 and an external PFET are used to provide a current limited 12V/4.5A output derived from the main 12V output of the forward converter. This power supply has a peak efficiency of over 94%
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage36 to 72 V
-
Output Voltage12 V
-
Output Current4.5 A
-
Output Power54 W
-
TopologyForward- Active Clamp|Forward- Synchronous
