PMP6753, 18Vdc-60Vdc Input,3.3V @ 25A Output,94% Efficient Active Clamp forward
Referenzdesign unter Verwendung des Teils UCC2897APW von Texas Instruments
Bilder
1 / 1
Zugehörige Dokumente
Für Endprodukte
- Communications and Telecom
Beschreibung

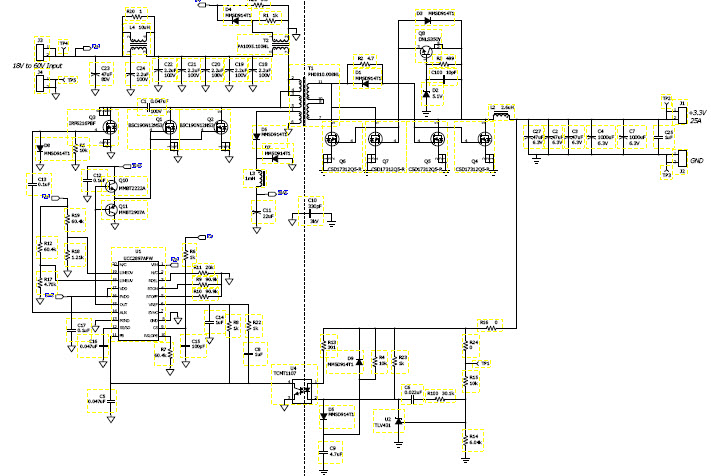

- PMP6753, 18Vdc-60Vdc Input,3.3V @ 25A Output,94% Efficient Active Clamp forward. PMP6753 reference design provides 3.3V at 25A from a wide range 18V-60V telecom input with greater than 94% efficiency. This design uses the UCC2897A active clamp controller along with' NexFET power MOSFETs for synchronous rectification
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage18 to 60 V
-
Output Voltage3.3 V
-
Output Current25 A
-
Output Power82.5 W
-
TopologyForward- Active Clamp|Forward- Synchronous
