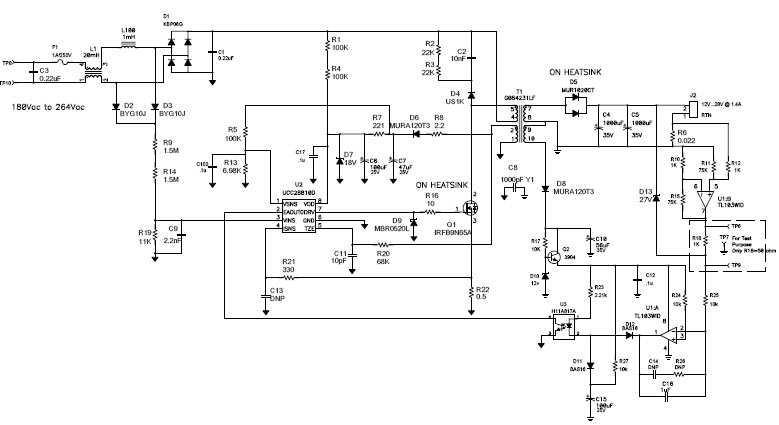

PMP4715, 28V @ 1.4A PFC Flyback
Referenzdesign unter Verwendung des Teils UCC28810D von Texas Instruments
Bilder
1 / 1
Zugehörige Dokumente
Für Endprodukte
- LED Lighting
Beschreibung
- PMP4715, 28V @ 1.4A PFC Flyback. PMP4715 is a constant current LED driver, including the PFC function, delivering 12V to 28V with a constant current of 1.4A. The input voltage is the high line
Haupteigenschaften
-
Conversion TypeAC to DC
-
Input Voltage180 to 265 (AC) V
-
Output Voltage28 V
-
Output Current1.4 A
-
Output Power39.2 W
-
TopologyFlyback- PFC
Empfohlene Bauteile (7)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
TL103WIDR | Texas Instruments | Operational Amplifiers - Op Amps | Op Amp Dual GP 32V 8-Pin SOIC T/R | In den Warenkorb | |
|
|
TL103WIDRG4 | Texas Instruments | Operational Amplifiers - Op Amps | Op Amp Dual GP 32V 8-Pin SOIC T/R | In den Warenkorb | |
|
|
TL103WIDG4 | Texas Instruments | Operational Amplifiers - Op Amps | Op Amp Dual GP 32V 8-Pin SOIC Tube | In den Warenkorb | |
|
|
UCC28810DG4 | Texas Instruments | LED Drivers | LED Driver 7000uA Supply Current 8-Pin SOIC Tube | In den Warenkorb | |
|
|
UCC28810DR | Texas Instruments | LED Drivers | LED Driver 7000uA Supply Current 8-Pin SOIC T/R | In den Warenkorb | |
|
|
UCC28810D | Texas Instruments | LED Drivers | LED Driver 7000uA Supply Current 8-Pin SOIC Tube | In den Warenkorb | |
|
|
UCC28810DRG4 | Texas Instruments | LED Drivers | LED Driver 7000uA Supply Current 8-Pin SOIC T/R | In den Warenkorb | |
