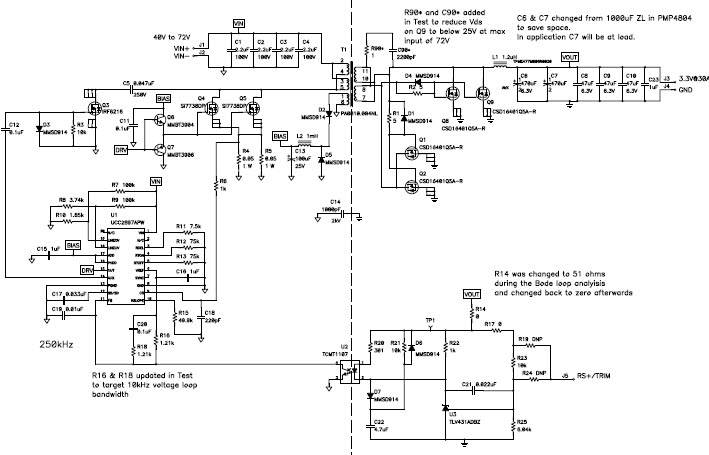

PMP5052, Active Clamp forward (3.3V@30A) for Telecom
Referenzdesign unter Verwendung des Teils UCC2897APW von Texas Instruments
Bilder
1 / 1
Zugehörige Dokumente
Für Endprodukte
- Communications and Telecom
Beschreibung
- PMP5052, Active Clamp forward (3.3V@30A) for Telecom. Active Clamp forward (3.3V@30A) for Telecom
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage36 to 75 V
-
Output Voltage3.3 V
-
Output Current30 A
-
Output Power99 W
-
TopologyForward- Active Clamp
Empfohlene Bauteile (6)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
TLV431ACDBVR | Texas Instruments | Voltage References | V-Ref Adjustable 1.24V to 6V 15mA 5-Pin SOT-23 T/R | In den Warenkorb | |
|
TCMT1107 | Vishay | Transistor and Photovoltaic Output Photocouplers | Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin SSOP T/R | In den Warenkorb | |
|
|
TLV431ACDBVT | Texas Instruments | Voltage References | V-Ref Adjustable 1.24V to 6V 15mA 5-Pin SOT-23 T/R | In den Warenkorb | |
|
UCC2897APWR/1 | Texas Instruments | PWM and Resonant Controllers | Current Mode PWM Controller 2A 1000kHz 20-Pin TSSOP Tube | In den Warenkorb | |
|
|
UCC2897APW | Texas Instruments | PWM and Resonant Controllers | Current Mode PWM Controller 2A 1000kHz 20-Pin TSSOP Tube | In den Warenkorb | |
|
|
UCC2897APWR | Texas Instruments | PWM and Resonant Controllers | Current Mode PWM Controller 2A 1000kHz 20-Pin TSSOP T/R | In den Warenkorb | |
