PMP5454, 36V-72V Input 3.3V/15A 92% Efficient Active Clamp forward
Referenzdesign unter Verwendung des Teils UCC2897AR von Texas Instruments
Bilder
1 / 1
Für Endprodukte
- Communications and Telecom
Beschreibung

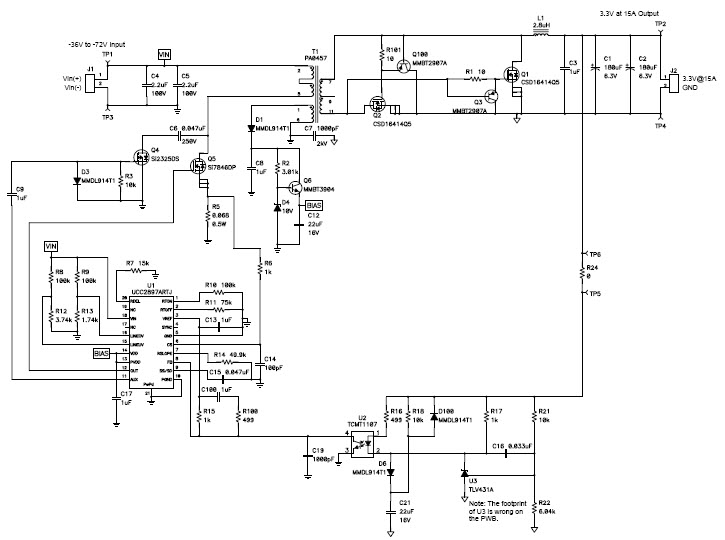

- PMP5454, 36V-72V Input 3.3V/15A 92% Efficient Active Clamp forward. PMP5454 reference design provides 3.3V at 50W (15A) from a standard 48V telecom input with greater than 92% efficiency. This design uses the UCC2897A active clamp controller along with CSD16414Q5 NexFET synchronous rectifiers
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage36 to 72 V
-
Output Voltage3.3 V
-
Output Current15 A
-
Output Power49.5 W
-
TopologyForward- Active Clamp|Forward- Synchronous
