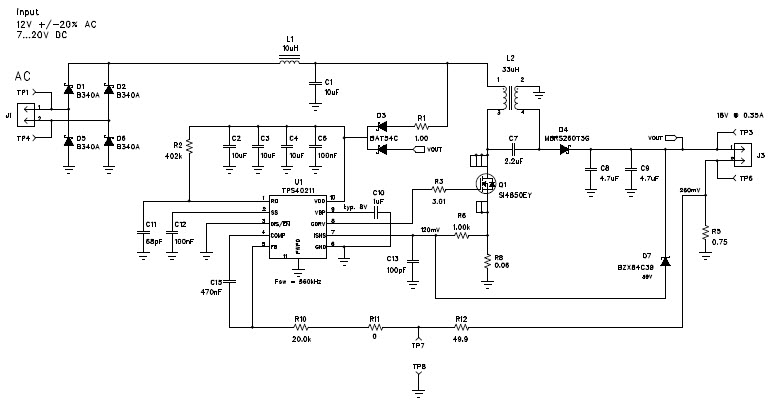

PMP5665, MR16 LED replacement Reference Design
Referenzdesign unter Verwendung des Teils TPS40211 von Texas Instruments
Bilder
1 / 1
Zugehörige Dokumente
Für Endprodukte
- LED Lighting
Beschreibung
- PMP5665, is a MR16 halogen bulb replacement with an regulated output current of 350mA at approx. 18V. The design based on TPs40211 works on 12V AC and 7-20V DC
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage7 to 20 V
-
Output Voltage18 V
-
Output Current0.35 A
-
Output Power6.3 W
-
TopologySEPIC- CCM
Empfohlene Bauteile (7)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
TPS40211DRCR | Texas Instruments | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Up 1000kHz 10-Pin VSON EP T/R | In den Warenkorb | |
|
TPS40211DGQ | Texas Instruments | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Up 1000kHz 10-Pin HVSSOP EP Tube | In den Warenkorb | |
|
|
TPS40211DRCT | Texas Instruments | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Up 1000kHz 10-Pin VSON EP T/R | In den Warenkorb | |
|
|
TPS40211DRCRG4 | Texas Instruments | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Up 1000kHz 10-Pin VSON EP T/R | In den Warenkorb | |
|
|
TPS40211DGQR | Texas Instruments | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Up 1000kHz 10-Pin HVSSOP EP T/R | In den Warenkorb | |
|
|
TPS40211DGQG4 | Texas Instruments | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Up 1000kHz 10-Pin HVSSOP EP Tube | In den Warenkorb | |
|
|
TPS40211DGQRG4 | Texas Instruments | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Up 1000kHz 10-Pin HVSSOP EP T/R | In den Warenkorb | |
