PMP6961, 220V-400VDC Input, 12V/100W Active Clamp forward Reference Design
Referenzdesign unter Verwendung des Teils UCC2897APW von Texas Instruments
Bilder
1 / 1
Zugehörige Dokumente
- TL431A CAD symbol
- TL431 PSPICE
- TL431B CAD symbol
- PMP6961 PCB
- TL431A CAD symbol
- TL431A CAD symbol
- TL431B CAD symbol
- TL431 TINA SPICE
- TL431A-Q1 CAD symbol
- TL431B-Q1 CAD symbol
- TL431A CAD symbol
- TL431B CAD symbol
- TL431 CAD symbol
- TL431 CAD symbol
- PMP6961 Test Result

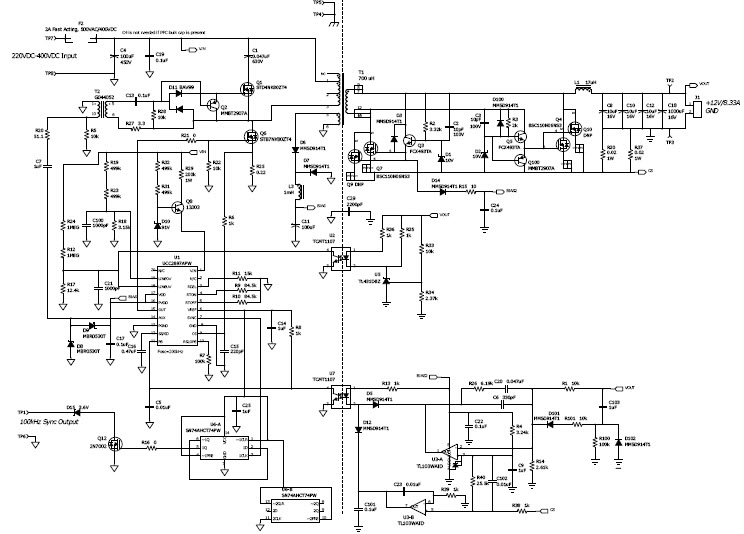

- Schematic
- TL431A CAD symbol
- TL431 CAD symbol
- TL431 CAD symbol
- TL431A CAD symbol
- TL431B CAD symbol
- TL431 CAD symbol
- BOM File
- SN74AHCT74 CAD symbol
- TL103WA CAD symbol
- TL431B CAD symbol
- TL431 CAD symbol
- TL431 CAD symbol
- TL431A CAD symbol
- TL431A CAD symbol
- TL431A CAD symbol
- TL431A-Q1 CAD symbol
- TL431B CAD symbol
- TL431B CAD symbol
- TL431B CAD symbol
- TL431B CAD symbol
- TL431 CAD symbol
- TL431 CAD symbol
Für Endprodukte
- Consumer Electronics
- Military and Avionics Imaging
Beschreibung
- PMP6961, Reference design generates an isolated 12V/100W output from a high voltage DC input. This design is intended to operate from the output of PFC front end regulator. The UCC2897A is used to control an active clamp forward converter. Self-driven synchronous rectifiers allow for over 91% efficiency. An accurate current limit is provided by directly sensing the output current. A clock pulse output is also provided for synchronizing with other converters
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage220 to 400 V
-
Output Voltage12 V
-
Output Current8.3 A
-
Output Power99.6 W
-
TopologyForward- Active Clamp|Synchronous Rectification
Empfohlene Bauteile (151)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
TL431LIBQDBZR | Texas Instruments | Voltage References | V-Ref Adjustable 2.495V to 36V 15mA 3-Pin SOT-23 T/R | In den Warenkorb | |
|
|
TL431BCDBZT | Texas Instruments | Voltage References | V-Ref Adjustable 2.495V to 36V 100mA 3-Pin SOT-23 T/R | In den Warenkorb | |
|
TL431BQDR | Texas Instruments | Voltage References | V-Ref Adjustable 2.495V to 36V 100mA 8-Pin SOIC T/R | In den Warenkorb | |
|
TL431BQLP | Texas Instruments | Voltage References | V-Ref Adjustable 2.495V to 36V 100mA 3-Pin TO-92 Bulk | In den Warenkorb | |
|
|
TL431AIDBZT | Texas Instruments | Voltage References | V-Ref Adjustable 2.495V to 36V 100mA 3-Pin SOT-23 T/R | In den Warenkorb | |
|
TL431QDCKR | Texas Instruments | Voltage References | V-Ref Adjustable 2.495V to 36V 100mA 6-Pin SC-70 T/R | In den Warenkorb | |
|
|
TL431CLP-Z | Texas Instruments | Voltage References | ADJUSTABLE PRECISION SHUNT REGULATORS | In den Warenkorb | |
|
TL431CDBVT | Texas Instruments | Voltage References | V-Ref Adjustable 2.495V to 36V 100mA 5-Pin SOT-23 T/R | In den Warenkorb | |
|
|
TL431AQDCKR | Texas Instruments | Voltage References | V-Ref Adjustable 2.495V to 36V 100mA 6-Pin SC-70 T/R | In den Warenkorb | |
|
|
TL431ACLPM | Texas Instruments | Voltage References | V-Ref Adjustable 2.495V to 36V 100mA 3-Pin TO-92 Ammo | In den Warenkorb | |
|
|
TL431BQDBVR | Texas Instruments | Voltage References | V-Ref Adjustable 2.495V to 36V 100mA 5-Pin SOT-23 T/R | In den Warenkorb | |
|
|
TL431IDBVR | Texas Instruments | Voltage References | V-Ref Adjustable 2.495V to 36V 100mA 5-Pin SOT-23 T/R | In den Warenkorb | |
