PMP7410, 220V-400VDC Input, 12V/160W Active Clamp forward Reference Design
Referenzdesign unter Verwendung des Teils UCC2897APW von Texas Instruments
Bilder
1 / 1
Zugehörige Dokumente
- TL103WA CAD symbol
- TL431A CAD symbol
- TL431A CAD symbol
- TL431A CAD symbol
- TL431A-Q1 CAD symbol
- TL431B CAD symbol
- TL431 CAD symbol
- PMP7410 Test Result
- TL431A CAD symbol
- TL431A-Q1 CAD symbol
- TL431B CAD symbol
- TL431B CAD symbol
- TL431B-Q1 CAD symbol
- TL431 CAD symbol
- TL431 CAD symbol
- TL431 CAD symbol
- TL431 CAD symbol

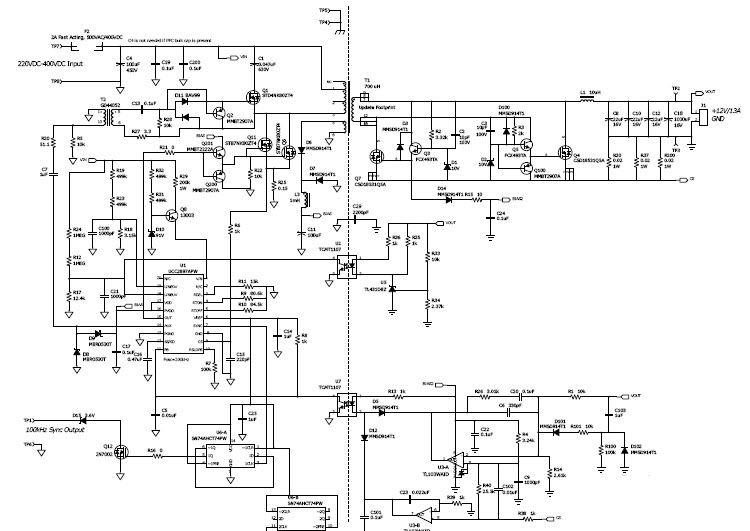

- Schematic
- TL431B CAD symbol
- TL431B CAD symbol
- TL431A CAD symbol
- TL431A CAD symbol
- TL431A CAD symbol
- TL431 CAD symbol
- TL431 CAD symbol
- BOM File
- SN74AHCT74 CAD symbol
- TL431 PSPICE
- TL431B CAD symbol
- TL431A CAD symbol
- TL431B CAD symbol
- TL431B CAD symbol
- TL431 CAD symbol
- TL431A CAD symbol
- TL431A TINA SPICE
- TL431B CAD symbol
- TL431 CAD symbol
Für Endprodukte
- Consumer Electronics
- Military and Avionics Imaging
Beschreibung
- Reference design generates an isolated 12V/160W output from a high voltage DC input. This design is intended to operate from the output of PFC front end regulator. The UCC2897A is used to control an active clamp forward converter. CSD18531Q5 synchronous rectifiers allow this design to achieve over 92% efficiency. An accurate current limit is provided by directly sensing the output current. A clock pulse output is also provided for synchronizing with other converters
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage220 to 400 V
-
Output Voltage12 V
-
Output Current13 A
-
Output Power156 W
-
TopologyForward- Active Clamp|Forward- Synchronous
Empfohlene Bauteile (151)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
TL431BQDBZRG4 | Texas Instruments | Voltage References | V-Ref Adjustable 2.495V to 36V 100mA 3-Pin SOT-23 T/R | In den Warenkorb | |
|
TL431ACLPR | Texas Instruments | Voltage References | V-Ref Adjustable 2.495V to 36V 100mA 3-Pin TO-92 T/R | In den Warenkorb | |
|
|
TL431BQLPE3 | Texas Instruments | Voltage References | V-Ref Adjustable 2.495V to 36V 100mA 3-Pin TO-92 Bulk | In den Warenkorb | |
|
TL431CDBVRE4 | Texas Instruments | Voltage References | V-Ref Adjustable 2.495V to 36V 100mA 5-Pin SOT-23 T/R | In den Warenkorb | |
|
|
TL431AQDBZRQ1 | Texas Instruments | Voltage References | V-Ref Adjustable 2.495V to 36V 100mA Automotive AEC-Q100 3-Pin SOT-23 T/R | In den Warenkorb | |
|
TL431AIDCKR | Texas Instruments | Voltage References | V-Ref Adjustable 2.495V to 36V 100mA 6-Pin SC-70 T/R | In den Warenkorb | |
|
|
TL431AQDBZTG4 | Texas Instruments | Voltage References | V-Ref Adjustable 2.495V to 36V 100mA 3-Pin SOT-23 T/R | In den Warenkorb | |
|
|
TL431AIDCKRG4 | Texas Instruments | Voltage References | V-Ref Adjustable 2.495V to 36V 100mA Automotive 6-Pin SC-70 T/R | In den Warenkorb | |
|
|
TL431BCDBZT | Texas Instruments | Voltage References | V-Ref Adjustable 2.495V to 36V 100mA 3-Pin SOT-23 T/R | In den Warenkorb | |
|
TL431BQDR | Texas Instruments | Voltage References | V-Ref Adjustable 2.495V to 36V 100mA 8-Pin SOIC T/R | In den Warenkorb | |
|
TL431BQPK | Texas Instruments | Voltage References | V-Ref Adjustable 2.495V to 36V 100mA 4-Pin(3+Tab) SOT-89 T/R | In den Warenkorb | |
|
|
TL431CDBVR | Texas Instruments | Voltage References | V-Ref Adjustable 2.495V to 36V 100mA 5-Pin SOT-23 T/R | In den Warenkorb | |
