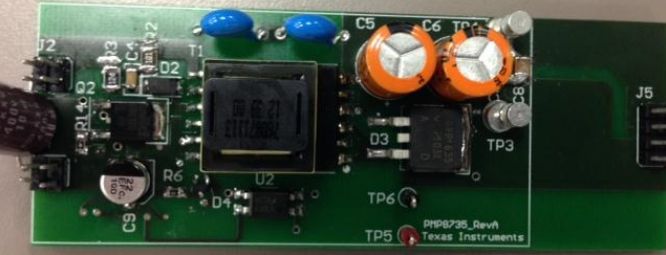

PMP8735, 144VAC to 253VAC Vin, 10.5W Quasi-Resonant Flyback
Referenzdesign unter Verwendung des Teils LM5023MM von Texas Instruments
Bilder
1 / 3
Zugehörige Dokumente
Für Endprodukte
- Industrial
Beschreibung
- PMP8735, Reference Design uses the LM5023 quasi-resonant flyback controller to generate 5V at 2.1A from an input voltage of 144VAC to 253VAC
Haupteigenschaften
-
Conversion TypeAC to DC
-
Input Voltage144 to 253 (AC) V
-
Output Voltage5 V
-
Output Current2.1 A
-
Output Power10.5 W
-
TopologyFlyback- Quasi Resonant
Empfohlene Bauteile (7)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
FOD817 | onsemi | Transistor and Photovoltaic Output Photocouplers | Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin PDIP Black Box | In den Warenkorb | |
|
LMV431AIMFX/NOPB | Texas Instruments | Voltage References | V-Ref Adjustable 1.24V to 30V 15mA 3-Pin SOT-23 T/R | In den Warenkorb | |
|
|
LMV431AIMFX/NOPB | Texas Instruments | Voltage References | V-Ref Adjustable 1.24V to 30V 15mA 3-Pin SOT-23 T/R | In den Warenkorb | |
|
LM5023MMX-2/NOPB | Texas Instruments | PWM and Resonant Controllers | Current Mode PWM Controller 700mA 130kHz 8-Pin VSSOP T/R | In den Warenkorb | |
|
|
LM5023MMX-2/NOPB | Texas Instruments | PWM and Resonant Controllers | Current Mode PWM Controller 700mA 130kHz 8-Pin VSSOP T/R | In den Warenkorb | |
|
|
LM5023MM-2/NOPB | Texas Instruments | PWM and Resonant Controllers | Current Mode PWM Controller 700mA 130kHz 8-Pin VSSOP T/R | In den Warenkorb | |
|
|
LM5023MM-2/NOPB | Texas Instruments | PWM and Resonant Controllers | Current Mode PWM Controller 700mA 130kHz 8-Pin VSSOP T/R | In den Warenkorb | |
