PMP9360, Altera Arria V SoC FPGA Power Solution Reference Design
Referenzdesign unter Verwendung des Teils LMZ31503RUQ von Texas Instruments
Bilder
1 / 5
Zugehörige Dokumente
Für Endprodukte
- Broadband Access
- Communications and Telecom
- FPGA Solutions
- Industrial
- Infrastructure
Beschreibung

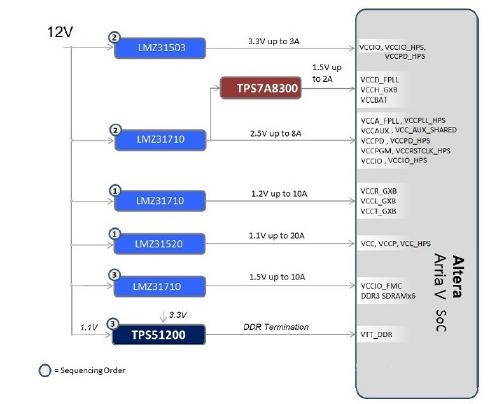

- PMP9360, Altera Arria V SoC FPGA Power Solution Reference Design. The PMP9360 reference design is a complete power solution for Altera's Arria V SoC devices. This design uses several LMZ3 series modules, an LDO, and a DDR termination regulator to provide all the necessary rails to power the SoC chip. This design also shows correct power up sequencing
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage4.5 to 12 V
-
Output Current3 A
-
TopologyBuck
Empfohlene Bauteile (9)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
TPS7A8300RGRT | Texas Instruments | Linear Regulators | LDO Regulator Pos 0.8V to 5V 2A 20-Pin VQFN EP T/R | In den Warenkorb | |
|
LMZ31520RLGT | Texas Instruments | DC to DC Converter and Switching Regulator Module | Module DC-DC 1-OUT 0.6V to 3.6V 20A 72-Pin BQFN T/R | In den Warenkorb | |
|
|
TPS7A8300RGRR | Texas Instruments | Linear Regulators | LDO Regulator Pos 0.8V to 5V 2A 20-Pin VQFN EP T/R | In den Warenkorb | |
|
LMZ31710RVQR | Texas Instruments | DC to DC Converter and Switching Regulator Module | Module DC-DC 1-OUT 0.6V to 5.5V 10A 42-Pin B3QFN T/R | In den Warenkorb | |
|
TPS51200DRCT | Texas Instruments | Special Purpose Voltage Regulators | DDR Memory Termination Regulator 2.375V to 3.5V 10-Pin VSON EP T/R | In den Warenkorb | |
|
|
LMZ31710RVQT | Texas Instruments | DC to DC Converter and Switching Regulator Module | Module DC-DC 1-OUT 0.6V to 5.5V 10A 42-Pin B3QFN T/R | In den Warenkorb | |
|
|
TPS51200DRCR | Texas Instruments | Special Purpose Voltage Regulators | DDR Memory Termination Regulator 2.375V to 3.5V 10-Pin VSON EP T/R | In den Warenkorb | |
|
LMZ31503RUQT | Texas Instruments | DC to DC Converter and Switching Regulator Module | Module DC-DC 1-OUT 0.8V to 5.5V 3A 47-Pin B1QFN T/R | In den Warenkorb | |
|
|
LMZ31503RUQR | Texas Instruments | DC to DC Converter and Switching Regulator Module | Module DC-DC 1-OUT 0.8V to 5.5V 3A 47-Pin B1QFN T/R | In den Warenkorb | |
