PMP9742, 108VAC - 305VAC Input, 3.6V/5mA Flyback Reference Design
Referenzdesign unter Verwendung des Teils UCC28910D von Texas Instruments

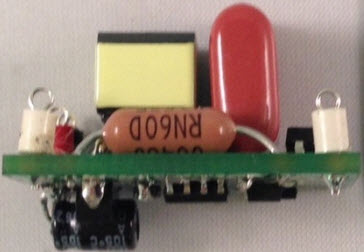

Bilder
1 / 3
Zugehörige Dokumente
Für Endprodukte
- AC to DC Charger
- Adapter
- Compact SMPS
- LED Driver
- Metering
- Servers
- White Goods
Beschreibung
- PMP9742, 108VAC - 305VAC Input, 3.6V/5mA Flyback Reference Design. This low power flyback supply is designed to minimize the total input current while supplying a low power 3.6V/5mA output. The output is functionally isolated from the input, but not for safety. The physical size is minimized by using the UCC28910 controller with integrated high-voltage MOSFET and primary-side regulation
Haupteigenschaften
-
Conversion TypeAC to DC
-
Input Voltage108 to 305 (AC) V
-
Output Voltage3.6 V
-
Output Current0.005 A
-
Output Power0.018 W
-
TopologyFlyback- DCM
Empfohlene Bauteile (1)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
UCC28910D | Texas Instruments | AC to DC Switching Converters | AC to DC Switching Converter Flyback 115kHz Tube 7-Pin SOIC | In den Warenkorb | |
