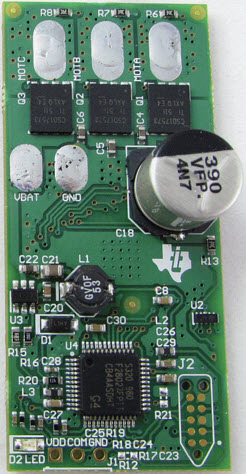

TIDA-00643, 4.4V to 30V, 15A High performance Brushless DC Drone Propeller Controller Reference Design
Referenzdesign unter Verwendung des Teils DRV8305NPHPR von Texas Instruments
Bilder
1 / 5
Für Endprodukte
- FAN Motor
- Pumps
- Remote Control
Beschreibung
- TIDA-00643, Reference Design is a 4.4 to 30 V brushless DC motor controller for high power drone, quadcopter, propeller, fan and pump applications. It uses the DRV8305 brushless DC motor gate driver, CSD17573Q5B 30V NexFET power MOSFETs, TPD4E05U06 TVS protection IC, C2000 motor control MCU and LMR16006 3.3V buck converter. It utilizes InstaSPIN-FOC for sensorless field oriented motor control and commands the motor speed through an external reference signal from a central controller. This design is focused on demonstrating a highly efficient and high power BLDC motor system
Haupteigenschaften
-
Motor TypeDC Motor
Empfohlene Bauteile (4)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
LMR16006XDDCR | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 4V to 60V Step Down Single-Out 0.8V to 55V 0.6A 6-Pin TSOT-23 T/R | In den Warenkorb | |
|
TMS320F28027FPTT | Texas Instruments | Microcontrollers - MCUs | MCU 32-bit C28x RISC 64KB Flash 3.3V 48-Pin LQFP Tray Automotive AEC-Q100 | In den Warenkorb | |
|
|
TMS320F28027FPTQ | Texas Instruments | Microcontrollers - MCUs | MCU 32-bit C28x RISC 64KB Flash 3.3V 48-Pin LQFP Tray Automotive AEC-Q100 | In den Warenkorb | |
|
DRV8305NPHPR | Texas Instruments | Motor Controller and Driver ICs | Brushless DC Gate Driver 48-Pin HTQFP EP T/R | In den Warenkorb | |
