TIDM-PLCLITE-PLUGMODULE, PLC Lite Communication Module Reference Design for Smart Home
Referenzdesign unter Verwendung des Teils TMS320F28035PAG von Texas Instruments
Bilder
1 / 3
Zugehörige Dokumente
Für Endprodukte
- E-Power Meter
Beschreibung

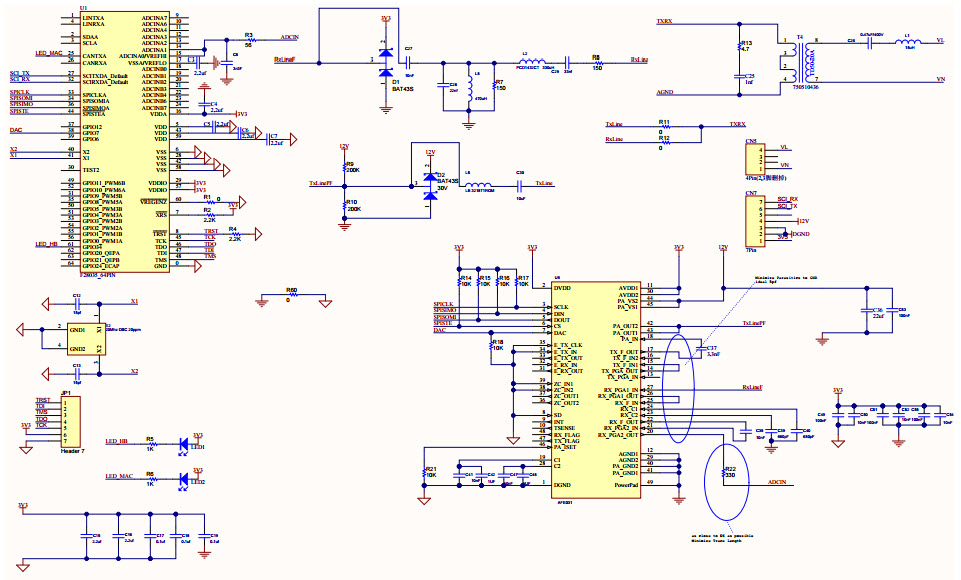

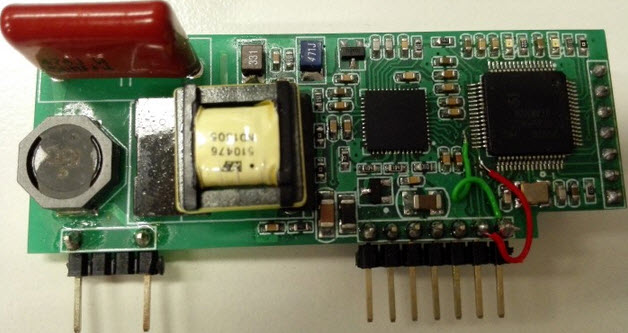

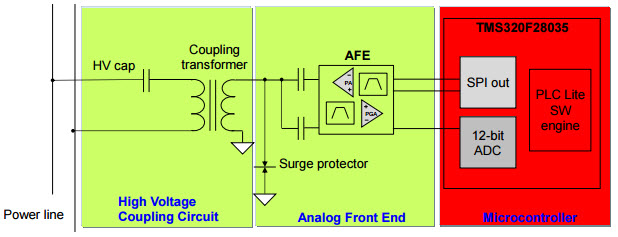

- TIDM-PLCLITE-PLUGMODULE, PLC Lite Communication Module Reference Design for Smart Home. This design is a PLC communication module in minimum PCB size with PLC lite software. This module can be used for smart home appliances internal communications without separated communication cables and also can avoid wall penetration issue of wireless solutions
Haupteigenschaften
-
Embedded System TypeMCU
-
Family NameF2803x
Empfohlene Bauteile (8)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
AFE031AIRGZ | Texas Instruments | Analog Front End - AFE | AFE General Purpose 3.3V 48-Pin VQFN EP T/R | In den Warenkorb | |
|
|
AFE031AIRGZR | Texas Instruments | Analog Front End - AFE | AFE General Purpose 3.3V 48-Pin VQFN EP T/R | In den Warenkorb | |
|
|
AFE031AIRGZT | Texas Instruments | Analog Front End - AFE | AFE General Purpose 3.3V 48-Pin VQFN EP T/R | In den Warenkorb | |
|
TMS320F28035PAGQ | Texas Instruments | Microcontrollers - MCUs | MCU 32-bit C28x RISC 128KB Flash 1.8V/3.3V 64-Pin TQFP Tray Automotive AEC-Q100 | In den Warenkorb | |
|
|
TMS320F28035PAGS | Texas Instruments | Microcontrollers - MCUs | MCU 32-bit C28x RISC 128KB Flash 1.8V/3.3V 64-Pin TQFP Tray Automotive AEC-Q100 | In den Warenkorb | |
|
|
TMS320F28035PAGSQ | Texas Instruments | Microcontrollers - MCUs | MCU 32-bit C28x RISC 128KB Flash 1.8V/3.3V 64-Pin TQFP Tray Automotive AEC-Q100 | In den Warenkorb | |
|
|
TMS320F28035PAGTR | Texas Instruments | Microcontrollers - MCUs | MCU 32-bit C28x RISC 128KB Flash 1.8V/3.3V 64-Pin TQFP T/R | In den Warenkorb | |
|
|
TMS320F28035PAGT | Texas Instruments | Microcontrollers - MCUs | MCU 32-bit C28x RISC 128KB Flash 1.8V/3.3V 64-Pin TQFP Tray | In den Warenkorb | |
