TIDM-SERVODRIVE, Industrial Servo Drive and AC Inverter Drive Reference Design
Referenzdesign unter Verwendung des Teils TMS320F28377DZWT von Texas Instruments
Bilder
1 / 22
Für Endprodukte
- CNC Machine
- Elevator
- Industrial Drives
- Robotics
- Servo Drives
Beschreibung

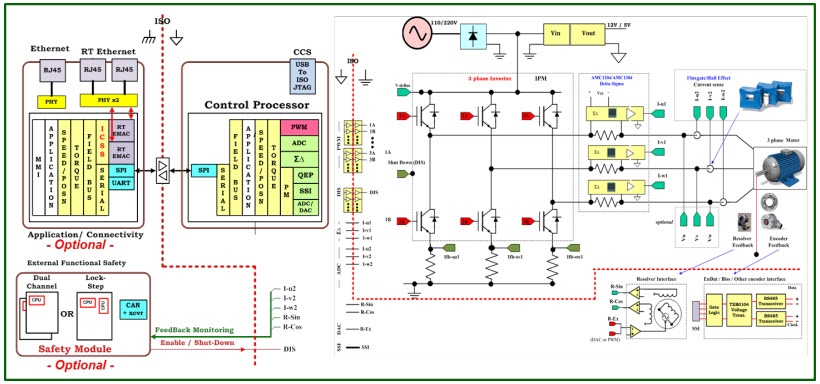

- TIDM-SERVODRIVE, Industrial Servo Drive and AC Inverter Drive Reference Design. The Design DRIVE Development Kit is a reference design for a complete industrial drive directly connecting to a three phase ACI or PMSM motor. Many drive topologies can be created from the combined control, power and communications technologies included on this single platform. Includes multiple position sensor interfaces, diverse current sensing techniques, hot-side partitioning options and expansion for safety and industrial Ethernet
Haupteigenschaften
-
Embedded System TypeMCU
Empfohlene Bauteile (70)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
SN74LVC1G332DRY2 | Texas Instruments | Logic Gates | OR Gate 1-Element 3-IN CMOS 6-Pin USON T/R | In den Warenkorb | |
|
SN74LVC1G332DRLR | Texas Instruments | Logic Gates | OR Gate 1-Element 3-IN CMOS 6-Pin SOT-563 T/R | In den Warenkorb | |
|
|
TPS3895ADRYR | Texas Instruments | Supervisory Circuits | Processor Supervisor Adj 1 Active High/Push-Pull 6-Pin USON T/R | In den Warenkorb | |
|
TPS73033DBVR | Texas Instruments | Linear Regulators | LDO Regulator Pos 3.3V 0.2A 5-Pin SOT-23 T/R | In den Warenkorb | |
|
REF3318AIDBZT | Texas Instruments | Voltage References | V-Ref Precision 1.8V 5mA 3-Pin SOT-23 T/R | In den Warenkorb | |
|
|
TLV2771IDBVR | Texas Instruments | Operational Amplifiers - Op Amps | Op Amp Single High Output Current Amplifier R-R O/P ±3V/6V 5-Pin SOT-23 T/R | In den Warenkorb | |
|
SN74LVC1G332DCKR | Texas Instruments | Logic Gates | OR Gate 1-Element 3-IN CMOS 6-Pin SC-70 T/R | In den Warenkorb | |
|
|
TPS3895ADRY | Texas Instruments | Supervisory Circuits | Processor Supervisor Adj 1 Active High/Push-Pull 6-Pin USON T/R | In den Warenkorb | |
|
TLV3502AID | Texas Instruments | Linear Comparators | Comparator Dual R-R I/O 5.5V 8-Pin SOIC Tube | In den Warenkorb | |
|
OPA2350EA/2K5G4 | Texas Instruments | Operational Amplifiers - Op Amps | Op Amp Dual Precision Amplifier R-R I/O ±2.75V/5.5V 8-Pin VSSOP T/R | In den Warenkorb | |
|
|
OPA2350EA/2K5G4 | Texas Instruments | Operational Amplifiers - Op Amps | Op Amp Dual Precision Amplifier R-R I/O ±2.75V/5.5V 8-Pin VSSOP T/R | In den Warenkorb | |
|
LMP7709MT/NOPB | Texas Instruments | Operational Amplifiers - Op Amps | Op Amp Quad Precision Amplifier R-R I/O ±6V/12V 14-Pin TSSOP Tube | In den Warenkorb | |
