TIDM-SOMPLC-F28PLC84, System on Module for Power Line Communication Reference Design
Referenzdesign unter Verwendung des Teils TMS320F28PLC84PNT von Texas Instruments
Bilder
1 / 7
Zugehörige Dokumente
- System on Module for Power Line Communication (CENELEC Freq. Band) Assembly
- System on Module for Power Line Communication (CENELEC Freq. Band) Schematic
- System on Module for Power Line Communication (CENELEC Freq. Band) Gerber Files
- System on Module for Power Line Communication (CENELEC Freq. Band) CAD Files
- System on Module for Power Line Communication (CENELEC Freq. Band) PCB Layout
- System on Module for Power Line Communication (CENELEC Freq. Band) BOM
Für Endprodukte
- Industrial Programmable Logic Controllers (PLCs)
- Smart Electric Meter
- Solar Power Inverter
Beschreibung

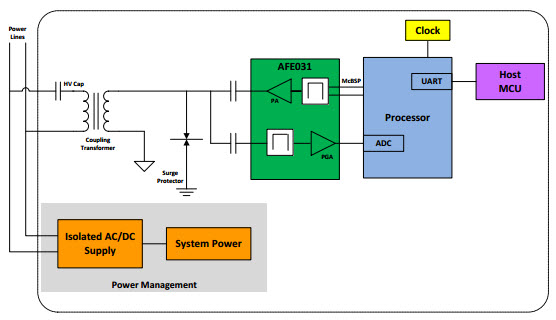

- TIDM-SOMPLC-F28PLC84, System on Module for Power Line Communication Reference Design. The SOMPLC-F28PLC84 is a single-board System on Module (SOM) for PLC in the CENELEC frequency band. This single hardware design supports several popular PLC industry standards including PRIME, G3-PLC and IEEE-1901.2. The SOMPLC-F28PLC84 replaces the earlier SOMPLC-F28PLC83 and is fully hardware and software compatible with the earlier design. develops and provides the complete PLC software stacks along with the SoM. A single hardware design which supports multiple PLC standards allows OEMs to reduce development costs by reusing the PLC hardware in products for multiple different regions of the world with different PLC requirements
Haupteigenschaften
-
Embedded System TypeSOM
-
Core ProcessorC28x
Empfohlene Bauteile (14)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
AFE031AIRGZ | Texas Instruments | Analog Front End - AFE | AFE General Purpose 3.3V 48-Pin VQFN EP T/R | In den Warenkorb | |
|
TPS62240DRVT | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 2V to 6V Synchronous Step Down Single-Out 0.6V to 6V 0.3A 6-Pin WSON EP T/R | In den Warenkorb | |
|
|
AFE031AIRGZT | Texas Instruments | Analog Front End - AFE | AFE General Purpose 3.3V 48-Pin VQFN EP T/R | In den Warenkorb | |
|
|
AFE031AIRGZR | Texas Instruments | Analog Front End - AFE | AFE General Purpose 3.3V 48-Pin VQFN EP T/R | In den Warenkorb | |
|
TPS62240DDCRG4 | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 2V to 6V Synchronous Step Down Single-Out 0.6V to 6V 0.3A 5-Pin TSOT-23 T/R | In den Warenkorb | |
|
|
TPS62240DRVR | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 2V to 6V Synchronous Step Down Single-Out 0.6V to 6V 0.3A 6-Pin WSON EP T/R | In den Warenkorb | |
|
AT24C1024W-10SU-2.7-T | Microchip Technology | EEPROM | EEPROM Serial-2Wire 1M-bit 128K x 8 3.3V/5V 8-Pin SOIC EIAJ T/R | In den Warenkorb | |
|
TPS3828-33DBVR | Texas Instruments | Supervisory Circuits | Processor Supervisor 2.93V 1 Active Low/Open Drain Automotive 5-Pin SOT-23 T/R | In den Warenkorb | |
|
|
TPS62240DRVRG4 | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 2V to 6V Synchronous Step Down Single-Out 0.6V to 6V 0.3A 6-Pin WSON EP T/R | In den Warenkorb | |
|
SN74LVC2G07DBVR | Texas Instruments | Buffers and Line Drivers | Buffer/Driver 2-CH Non-Inverting Open Drain CMOS 6-Pin SOT-23 T/R | In den Warenkorb | |
|
|
TPS3828-50DBVR | Texas Instruments | Supervisory Circuits | Processor Supervisor 4.55V 1 Active Low/Open Drain Automotive 5-Pin SOT-23 T/R | In den Warenkorb | |
|
|
TPS62240DDCT | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 2V to 6V Synchronous Step Down Single-Out 0.6V to 6V 0.3A 5-Pin TSOT-23 T/R | In den Warenkorb | |
