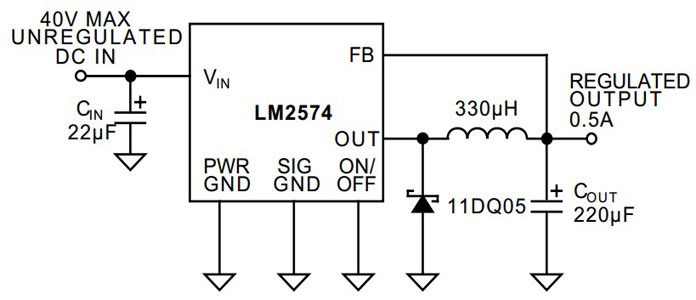

Typical Application for LM2574: 52kHz Simple 0.5A Buck Regulator
Referenzdesign unter Verwendung des Teils LM2574 von Microchip Technology
Bilder
1 / 1
Für Endprodukte
- Buck Converter
- Linear Regulators
- Switching Regulators
Beschreibung
- Typical Application for LM2574: 52kHz Simple 0.5A Buck Regulator. The LM2574 family is a series of easy to use fixed and adjustable switching voltage regulators. The LM2574 contains all of the active circuitry necessary to construct a stepdown (buck) switching regulator and requires a minimum of external components
Haupteigenschaften
-
Conversion TypeDC to DC
-
TopologyBuck
Empfohlene Bauteile (4)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
LM2574-5.0YN | Microchip Technology | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 4V to 40V Step Down Single-Out 5V 0.5A 8-Pin PDIP Tube | In den Warenkorb | |
|
|
LM2574-12YN | Microchip Technology | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 4V to 40V Step Down Single-Out 12V 0.5A 8-Pin PDIP Tube | In den Warenkorb | |
|
|
LM2574-3.3YN | Microchip Technology | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 4V to 40V Step Down Single-Out 3.3V 0.5A 8-Pin PDIP Tube | In den Warenkorb | |
|
|
LM2574YN | Microchip Technology | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 4V to 40V Step Down Single-Out 1.23V to 37V 0.5A 8-Pin PDIP Tube | In den Warenkorb | |
