3.3V DC to DC Single Output Power Supply for Portable Medical Devices
Referenzdesign unter Verwendung des Teils TPS61020 von Texas Instruments
Bilder
1 / 1
Zugehörige Dokumente
Für Endprodukte
- Battery Management
- Cellular Phone
- Flash Camera
- LED Lighting
- Personal Digital Assistant
- Portable Media Player
- Portable Medical Devices
Beschreibung

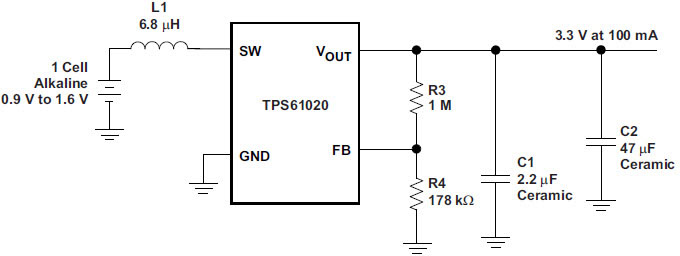

- TPS61020, Boost converter used to boost a single-cell alkaline battery up to 3.3V. The maximum load current from the 3.3V output is 100mA. The alkaline battery is considered completely discharged when its voltage is 0.9V
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage0.9 to 1.6 V
-
Output Voltage3.3 V
-
Output Current0.1 A
-
TopologyBoost
