TPS61020 Evaluation module (EVM) for low-power, high-efficiency, boost converter
Referenzdesign unter Verwendung des Teils TPS61020DRC von Texas Instruments

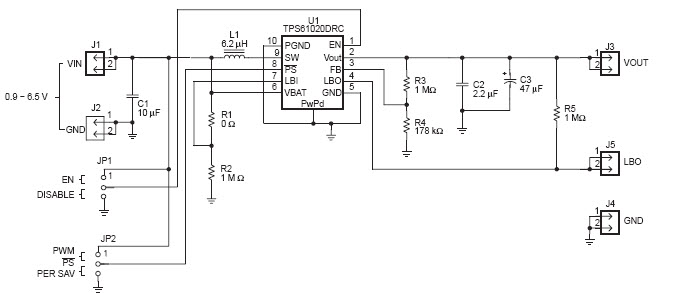

Bilder
1 / 1
Zugehörige Dokumente
Für Endprodukte
- Battery Management
- Cellular Phone
- Flash Camera
- Personal Digital Assistant
- Portable Media Player
- Portable Medical Devices
Beschreibung
- TPS61020EVM-025 is an evaluation tool for the TPS61020 inductive step-up converter in QFN-10 package which can supply voltages up to 5.5V from a 0.9-V to 6.5-V input featuring an LDO down-mode regulating the output voltage even if the input voltage exceeds the output voltage level. The TPS61020EVM-025 uses a TPS61020 adjustable output step-up converter and the appropriate external components to provide a 3.3-V output voltage. By replacing the feedback components other voltages can be generated. The EVM can also be used to evaluate other options of the TPS6102x family. Please follow the instructions in the User's Guide of the EVM
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage0.9 to 6.5 V
-
Output Voltage1.8 to 5.5 V
-
Output Current1.2 A
-
Efficiency95 %
-
TopologyBoost
Empfohlene Bauteile (3)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
TPS61020DRC | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 0.9V to 6.5V Synchronous Step Up Single-Out 1.8V to 5.5V 1.2A 10-Pin VSON EP | In den Warenkorb | |
|
|
TPS61020DRCR | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 0.9V to 6.5V Synchronous Step Up Single-Out 1.8V to 5.5V 1.2A 10-Pin VSON EP T/R | In den Warenkorb | |
|
|
TPS61020DRCRG4 | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 0.9V to 6.5V Synchronous Step Up Single-Out 1.8V to 5.5V 1.2A 10-Pin VSON EP T/R | In den Warenkorb | |
